ZK5223X12
ZK5223X12
ZK5213 series machine is independent developed by Zhejiang Handa company,characteristic of high rigidity and superior performance.Numerical controlled artifical intelligence systems are applied in these machine,which enable them to drill 24 holes at most simultaneously,are especially useful for the parts with lots of holes,parts with large holes and parts with deep holes.
- Model: ZK5223*12
- Max No. Of Spindle: 12pcs
- Machine Type: Driling Machine
- Control Type: Touch screen
GET A QUOTE Download
Specifications
| Technical Parameter | Value |
|---|---|
| Net weight | 2950kg |
| Min center distance | 42mm |

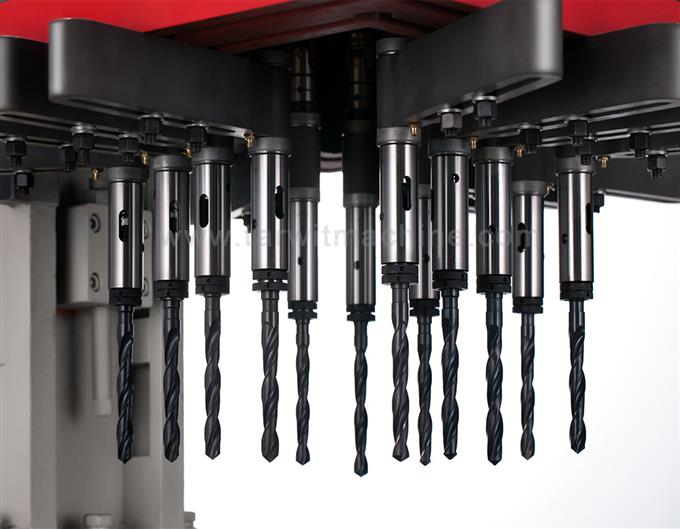

| Max No. Of Spindle | 12pcs |
| Drilling Capacity | Ф14-φ23mm |
| Drilling Area | 290X500(400*400)mm |

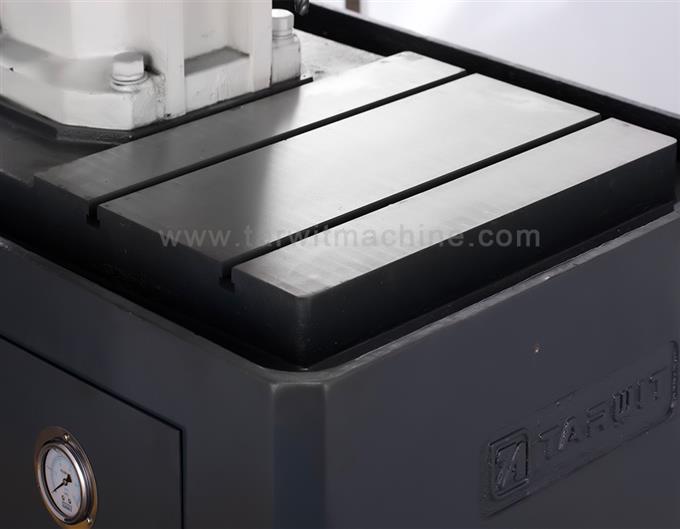

| Work table size | 450x750mm |
| Spindle Speed | 90-369rpm |
| Main Motor | 7.5-4Pkw |

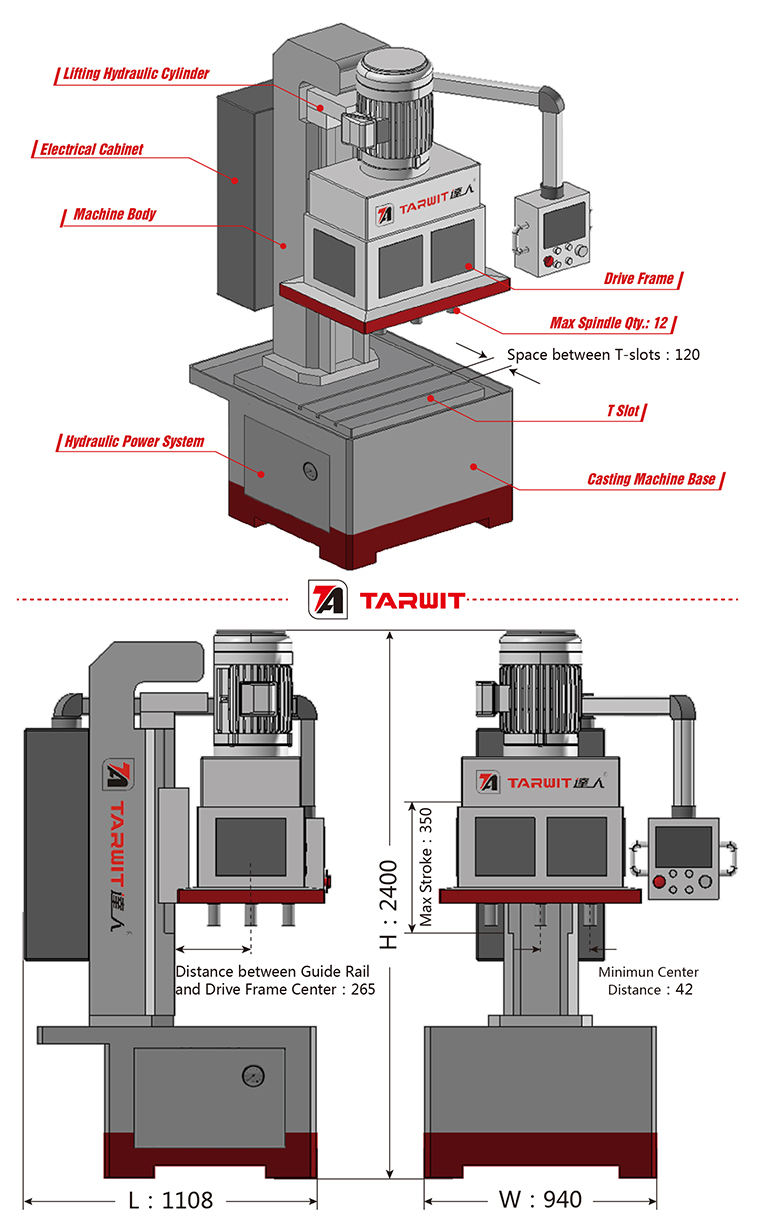

| Size | 940x1108x2400mm |
| Z axis Travel(Stroke) | 350mm |
| Speed Adjust | Frequency converter |
| Hydraulic pump motor | 0.75kw |
| Min Distance From Spindle Head | 240mm |
| Maximum Spindle Travel | 350mm |
| Spindle Rotary Speed | 240-560r/min |
| Lubrication Motor | 0.09kw |
Processing Example

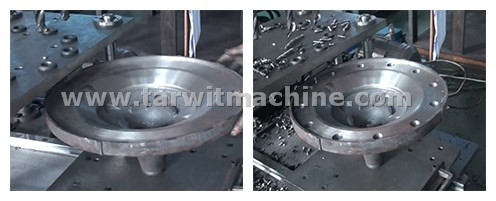

Machine Model：ZK5223*12/12Y
Workpiece Name：Valve Cover
Depth of Holes：18mm
Diameter of Holes：14mm
Number of Holes：12
Processing Time：60s

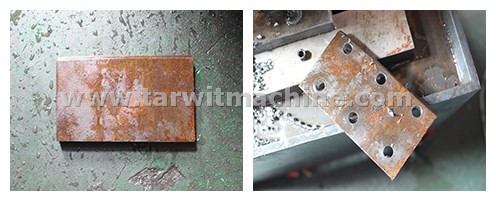

Machine Model：ZK5223*12/8Y
Workpiece Name：Iron Bar
Depth of Holes：Through Hole
Diameter of Holes：17mm
Number of Holes：8
Processing Time：70s
