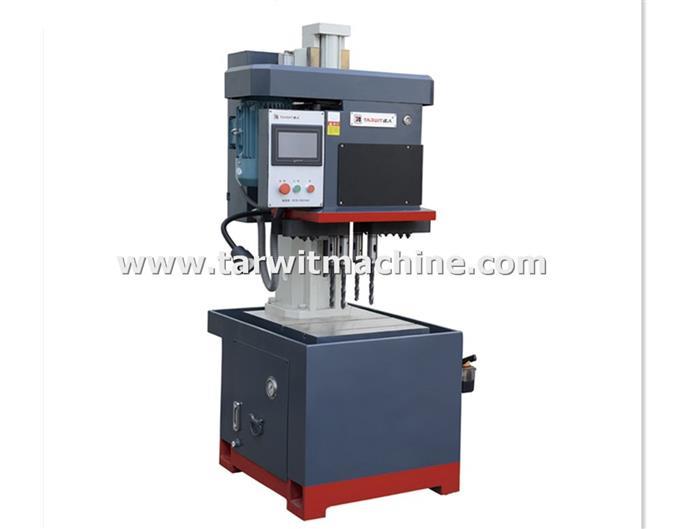

ZK5223X8
ZK5223X8
- Model: ZK5223*8
- Max No. Of Spindle: 8pcs
- Machine Type: Driling Machine
- Control Type: Touch screen
GET A QUOTE Download
| Multi Spindle Drilling Machine or Tapping machine made in HANDA | ||||||
 | Model: | ZB5207 |  | Model: | ZB5213/ZB5223 | |
| Type: | Vertical | Type: | Vertical | |||
| Drilling capacity: | Φ3-Φ7 | Drilling capacity: | Φ3-Φ13/Φ14-Φ23 | |||
| Max Spindle: | 12 pcs | Max Spindle: | 12/6 pcs | |||
| Drilling Area: | 300x300mm | Drilling Area: | 180x300/180x290mm | |||
| Min. Center Distance: | 24mm | Min. Center Distance: | 30/42mm | |||
 | Model: | ZB6213/ZB6223 |  | Model: | ZK8223 | |
| Type: | Horizontal | Type: | Vertical | |||
| Drilling capacity: | Φ3-Φ13/Φ14-Φ23 | Drilling capacity: | Φ14-Φ23 | |||
| Max Spindle: | 12/6 pcs | Max Spindle: | customized | |||
| Drilling Area: | 180x300/170x290mm | Drilling Area: | customized | |||
| Min. Center Distance: | 30/42mm | Min. Center Distance: | 60mm | |||
 | Model: | ZK5213/ZK5223 |  | Model: | ZK5232 | |
| Type: | Vertical | Type: | Vertical | |||
| Drilling capacity: | Φ3-Φ13/Φ14-Φ23 | Drilling capacity: | Φ23-Φ32 | |||
| Max Spindle: | 24/12 pcs | Max Spindle: | 12 pcs | |||
| Drilling Area: | 300x520/290x500mm | Drilling Area: | 600X650mm | |||
| Min. Center Distance: | 30/45mm | Min. Center Distance: | 65mm | |||
 | Model: | ZK6232 |  | Model: | SK5213 | |
| Type: | Horizontal | Type: | Vertical | |||
| Drilling capacity: | Φ14-Φ23 | Drilling capacity: | M3-M16 | |||
| Max Spindle: | 12 pcs | Max Spindle: | 24 pcs | |||
| Drilling Area: | 400x400mm | Drilling Area: | 400x500 | |||
| Min. Center Distance: | 65mm | Min. Center Distance: | 30mm | |||
 | Model: | QK5213/QK5223 |  | Model: | QK61213 | |
| Type: | Vertical | Type: | Vertical | |||
| Drilling capacity: | Φ3-Φ13/Φ3-Φ23 | Drilling capacity: | Φ3-Φ16 | |||
| Tapping capacity: | M3-M12 | Tapping capacity: | M5-M16 | |||
| Max Spindle: | 12/8pcs | Max Spindle | 30/30(tapping) pcs | |||
| Drilling Area: | 150x180/140x170mm | Drilling Area: | 170X290mm | |||
| Min. Center Distance: | 30/45mm | Min. Center Distance: | 30mm | |||
 | Model: | ZB6423 | ||||
| Type: | Horizontal | |||||
| Drilling capacity: | Φ3-Φ23 | |||||
| Max Spindle | customized | |||||
| Drilling Area: | customized | |||||
| Min. Center Distance: | 100/150mm | |||||
Specifications
| Technical Parameter | Value |
|---|---|
| Min center distance | 40mm |
| Max No. Of Spindle | 8pcs |
| Drilling Capacity | φ14~φ23mm |
| Main Motor | 4kw |
Processing Example

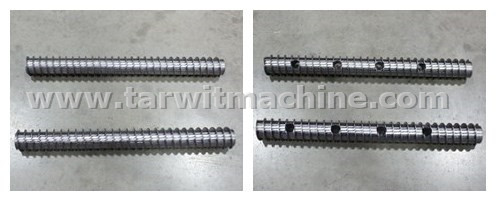

Machine Model：ZK5223*8/8G
Workpiece Name：Rod Bar
Depth of Holes：30mm Through-hole
Diameter of Holes：12mm
Number of Holes：8
Processing Time：70s

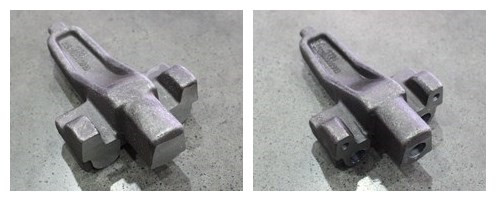

Machine Model：ZK5223*8/6G
Workpiece Name：Rings Clamping Holder of Car
Depth of Holes：45mm
Number of Holes：5
Diameter of Holes：Φ13.1mm / Φ14mm / Φ6.8mm
Processing Time：80s
