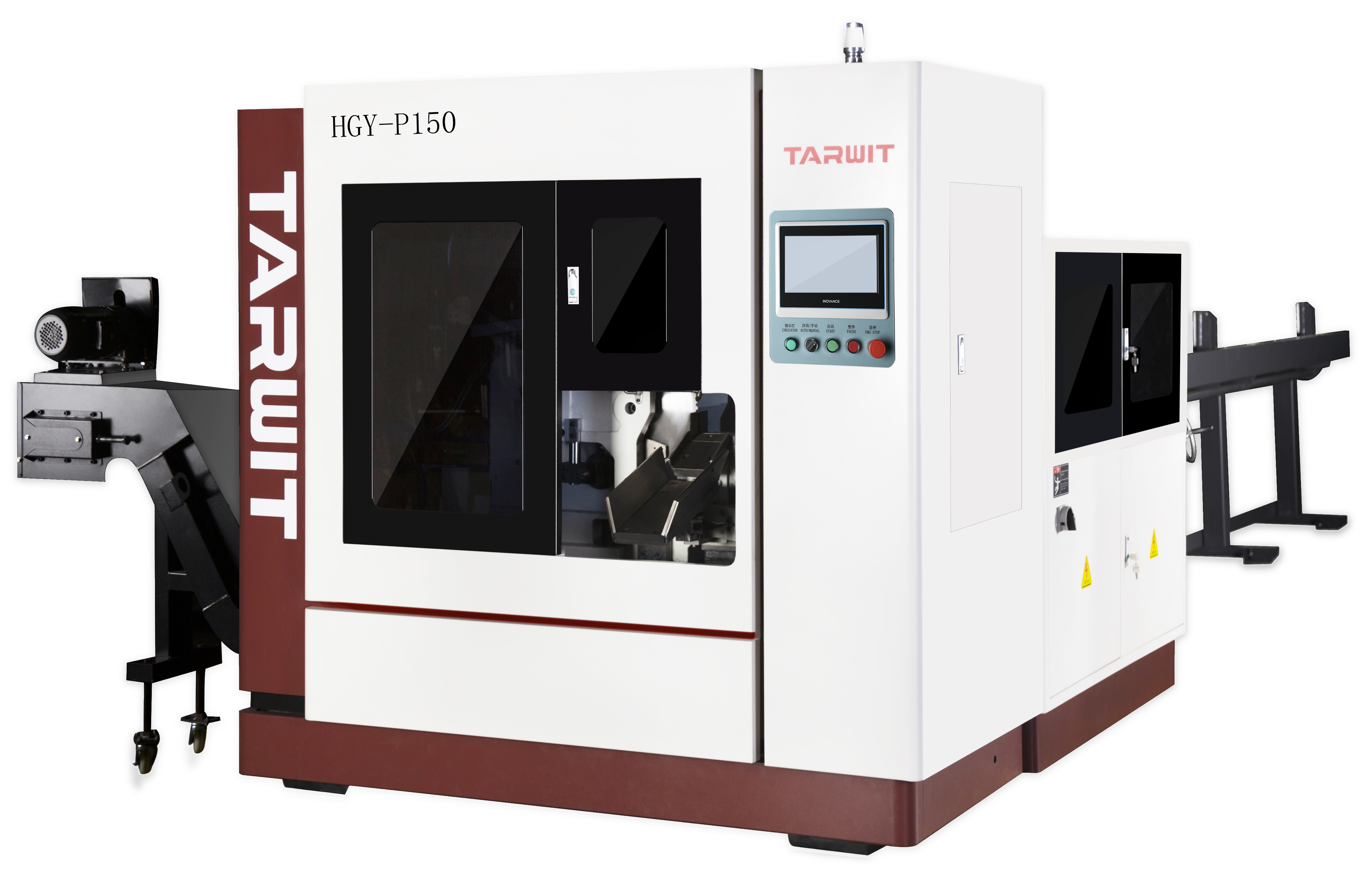

HGY-P150 Circular Saw Cutting Machine
HGY-P150 Circular Saw Cutting Machine
High precision cutting with short cycle times and maximum productivity. Adopts PLC, HMI console, Servomotor and ballscrew control sawhead feed rate, servomotor and ballscrew control cut-to-length feed. Oil mist cooling.
- Model: HGY-P100
GET A QUOTE Download
Optional:
Oil Mist Collector
Specifications
| Technical Parameter | Value |
|---|---|
| Blade Motor | 15Kw |
| Size | 2500 x 2500 x 2200mm |
| Hydraulic pump motor | 3Kw |
| Sawhead Feed motor | 4.4Kw |
| Cut-to-Length Feed motor | 1.8Kw |
| Saw Blade size | 460 x 50 x 2.7mm |
| Stroke | 850mm |
| ●Round Cutting capacity | 40 - 150mm |
| ■Rectangle Cutting capacity | 40x40 - 120x120mm |
| Remnant Length | 90mm + Length of Parts |
| Blade speed | 18 - 150rpm |
| Workpiece clamp | Hydrulic press clamping |
| Hydraulic tank capacity | 80L |
| Table height | 900mm |
