Machine features
ZB6213 horizontal multiple spindle drilling machine consist of two categories, fixed multiple spindle drilling machine and adjustable multiple spindle drilling machine, are characteristic of high rigidity, powerful driving force and smooth iron chip clearance suitable for the parts with large holes parts with deep holes and parts with different diameter holes. TARWIT ZB6213 series machine filled the blank in China market, are warmly welcomed now by the customers for their practical performance and moderate prices.

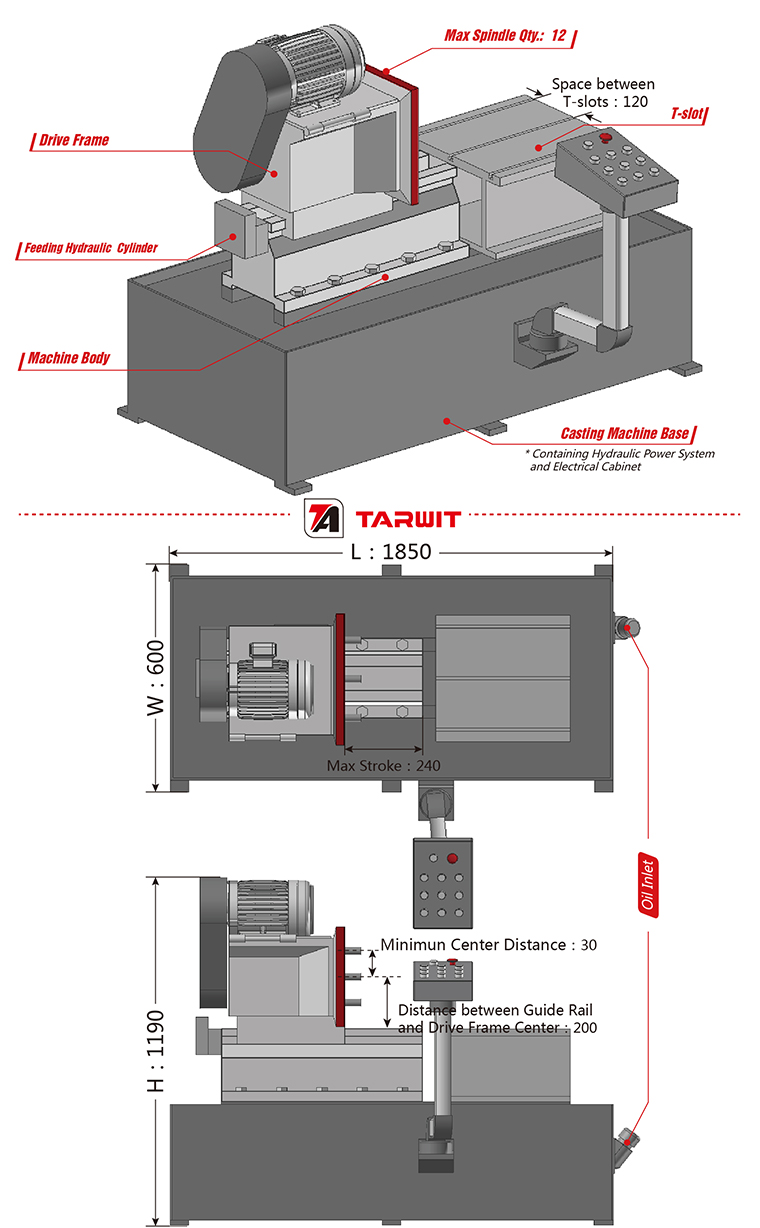

Machine parameters
Technical Parameter Value
Model ZB6213X12
Net weight 1100kg
Min center distance 30mm
Max No. Of Spindle 12pcs
Drilling Capacity Φ3-Φ13mm
Drilling Area 180x300mm
Work table size 350x500mm
Main Motor 3kw
Size 1850x600x1190mm
Hydraulic system motor 0.75kw
Speed Adjust Change V-belt
Min Distance From Spindle Head 250mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 557/842/1367r/min
Lubrication Motor 0.09kw
Details

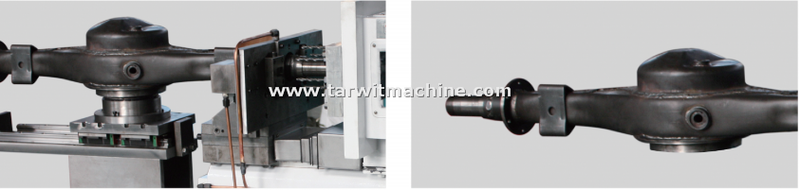

  Processing Example

Machine ModelZB6213*12/6Y           Workpiece NameAuto Back Axle

Diameter of Holes10.5mm                   Number of Holes6                      Processing Time20s

ZB6213X12 horizontal multiple spindle drilling machine photo3.png
