Machine features

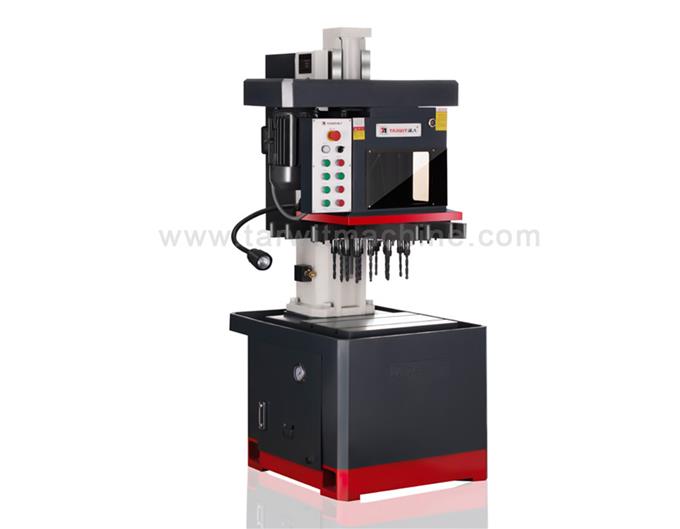

TARWIT brand vertical multiple drilling machine is our second generation vertical machine, fully absorbing the advantages of the multiple drilling machines existed world widely. With adjustable hole distances, it’s suitable for all kinds of work piece, especially good at drilling cast iron, non-ferrous metals and the ferrous metals with the hardness less than HRC35. It will be a great help to you when large quantity batch production is needed.
Machine parameters
Technical Parameter Value
Model ZB5213*12
Net weight 980kg
Min center distance 30mm
Max No. Of Spindle 12pcs
Drilling Capacity Φ3-Φ13mm
Drilling Area 180x300(300X300)
Work table size 350x500mm
Main Motor 3kw
Size 684x901x1780mm
Speed Adjust Change V-belt
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 250mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 557/842/1367r/min
Lubrication Motor 0.09kw
Details




 Specification




 Processing Example


Machine Model:ZB5213*12/10Y

Workpiece Name: Aluminum Flange

Material: Aluminum

Drilling Diameter: 10mm

Number of holes: 10

Drilling Time: 25s

Depth of holes:40mm

Feature

1.Stable gear-driven, little noise.

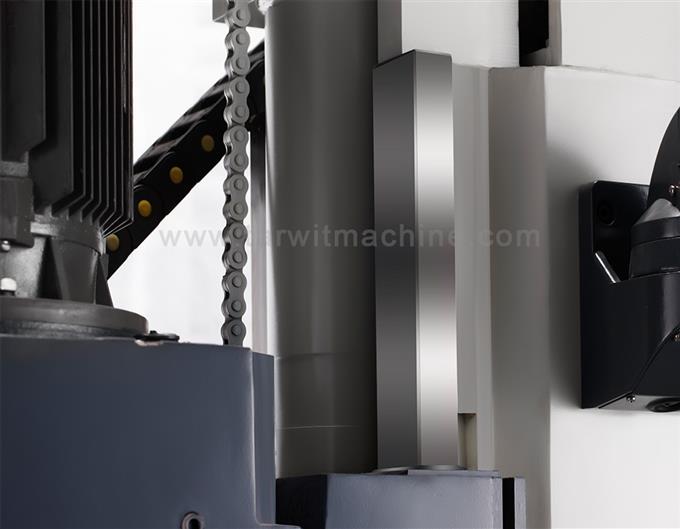

2.High-frequency quenching rectangular guide rail, higher rigidity.

3.Adjustable hole distances, suitable for all kinds of workpieces.

4.Stable hydraulic feed movement, stepless speed control.

5.Imported universal joint components, more stable power transmission.

6.Automatic hydraulic system, more stable and safer


 Advantages

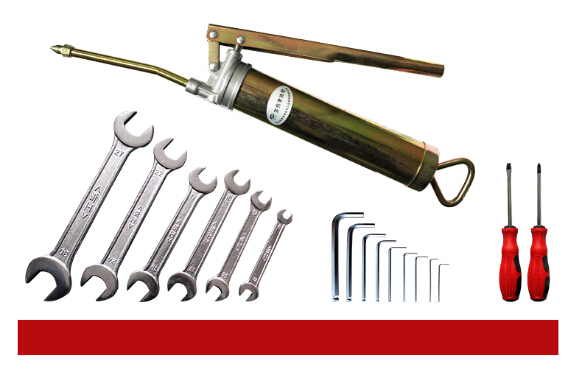

 Standard Accessories
