Machine features
ZB6223 horizontal multiple spindle drilling machine consist of two categories, fixed multiple spindle drilling machine and adjustable multiple spindle drilling machine, are characteristic of high rigidity, powerful driving force and smooth iron chip clearance suitable for the parts with large holes parts with deep holes and parts with different diameter holes. TARWIT ZB6213 series machine filled the blank in China market, are warmly welcomed now by the customers for their practical performance and moderate prices.

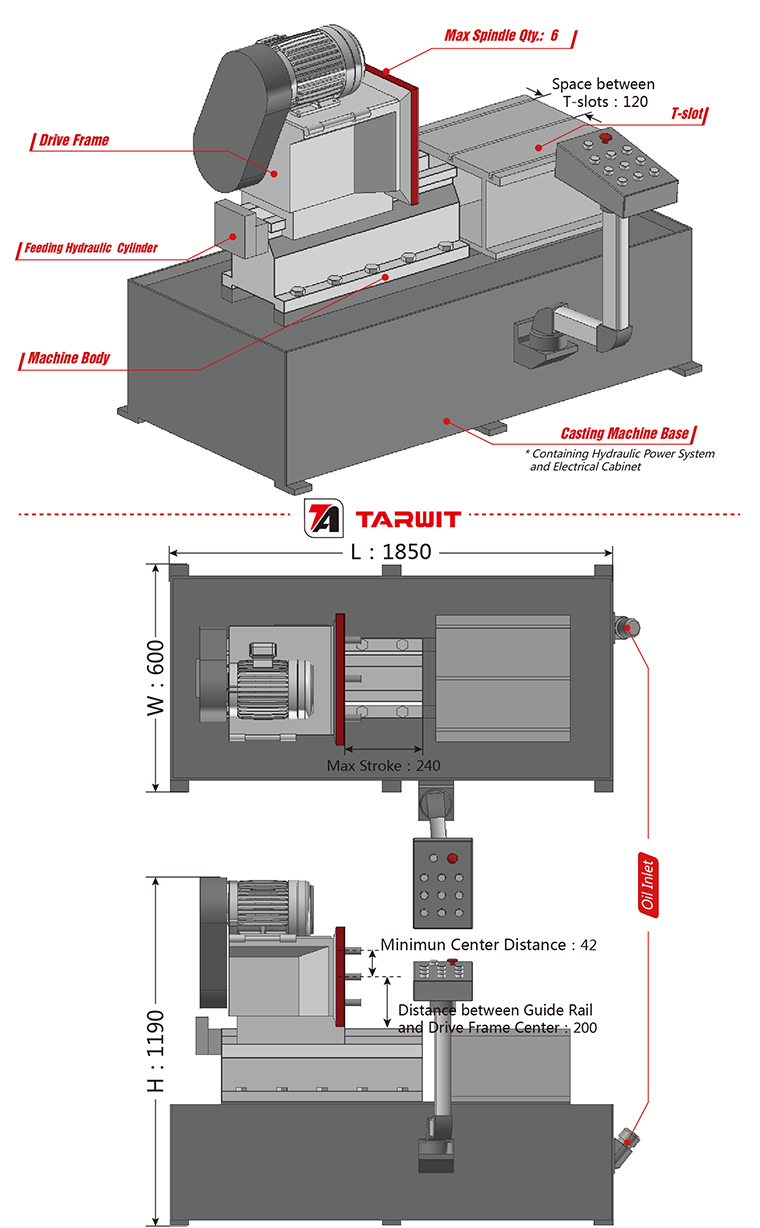

Machine parameters
Technical Parameter Value
Model ZB6223X6
Net weight 1100kg
Min center distance 42mm
Max No. Of Spindle 6pcs
Drilling Capacity Φ14-Φ23mm
Drilling Area 170x290mm
Work table size 350x500mm
Main Motor 4kw
Size 1850x600x1190mm
Speed Adjust Change V-belt
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 210mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 224/338/549r/min
Lubrication Motor 0.09kw
