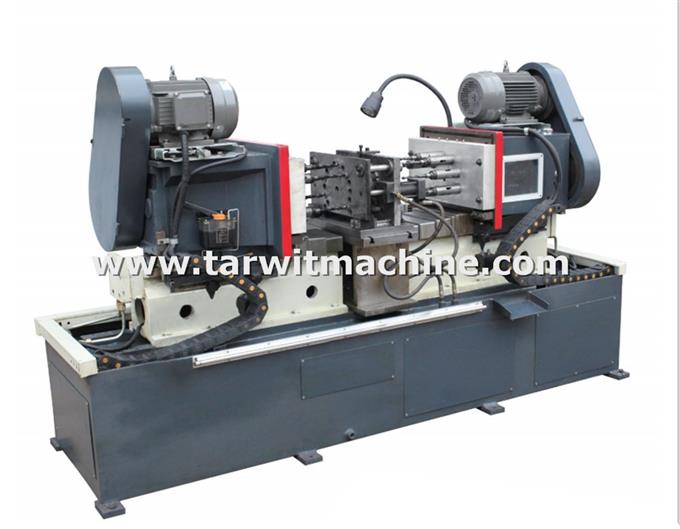

ZB6413X24
ZB6413X24
  • ZB6413X24

Views:1293Release date:2016-03-16

Previous:ZB6223X6Next:It's the last one.

Machine features
ZB6413 Series horizontal multiple drilling machine are capable of processing two surface at the same time, characteristic of higher efficiency, suitable for the parts with lots of holes, but with little distances between holes, and the parts of which two surface are needed to be drilled.

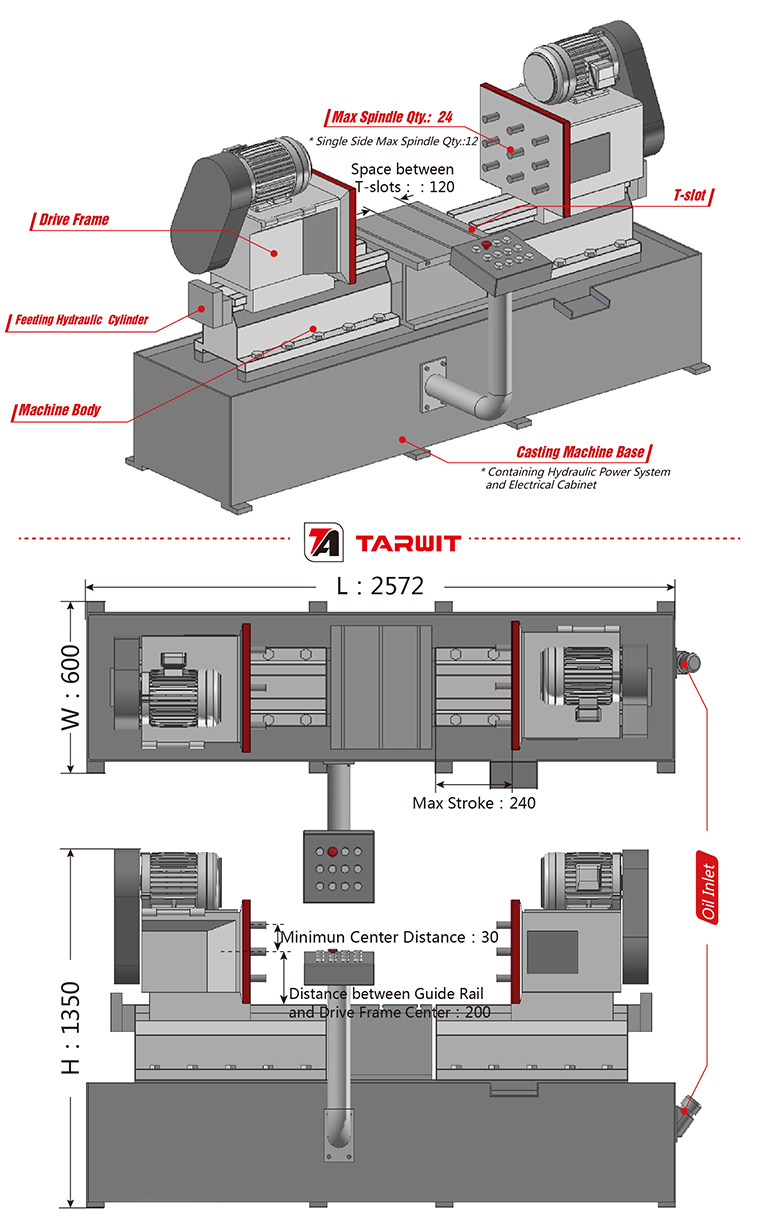

Machine parameters
Technical Parameter Value
Net weight 1460kg
Min center distance 30
Max No. Of Spindle 24pcs
Drilling Capacity φ3~φ13
Drilling Area 180X300MM
Work table size 300x400mm
Main Motor 3x2kw
Size 2572x600x1350mm
Speed Adjust Change V-belt
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 250mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 557/842/1367r/min
Lubrication Motor 0.09kw
Details

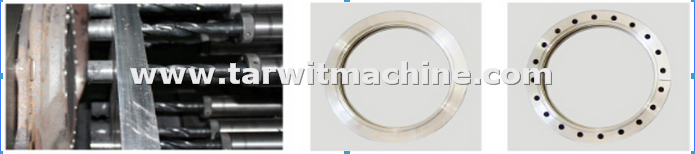

  Processing Example


Machine ModelZB6413*12/20Y           Workpiece NameAuto Spareparts

Diameter of Holes10.5mm                   Number of Holes20                       Processing Time45s

ZB6413X24 horizontal multiple spindle drilling machine photo1.png
