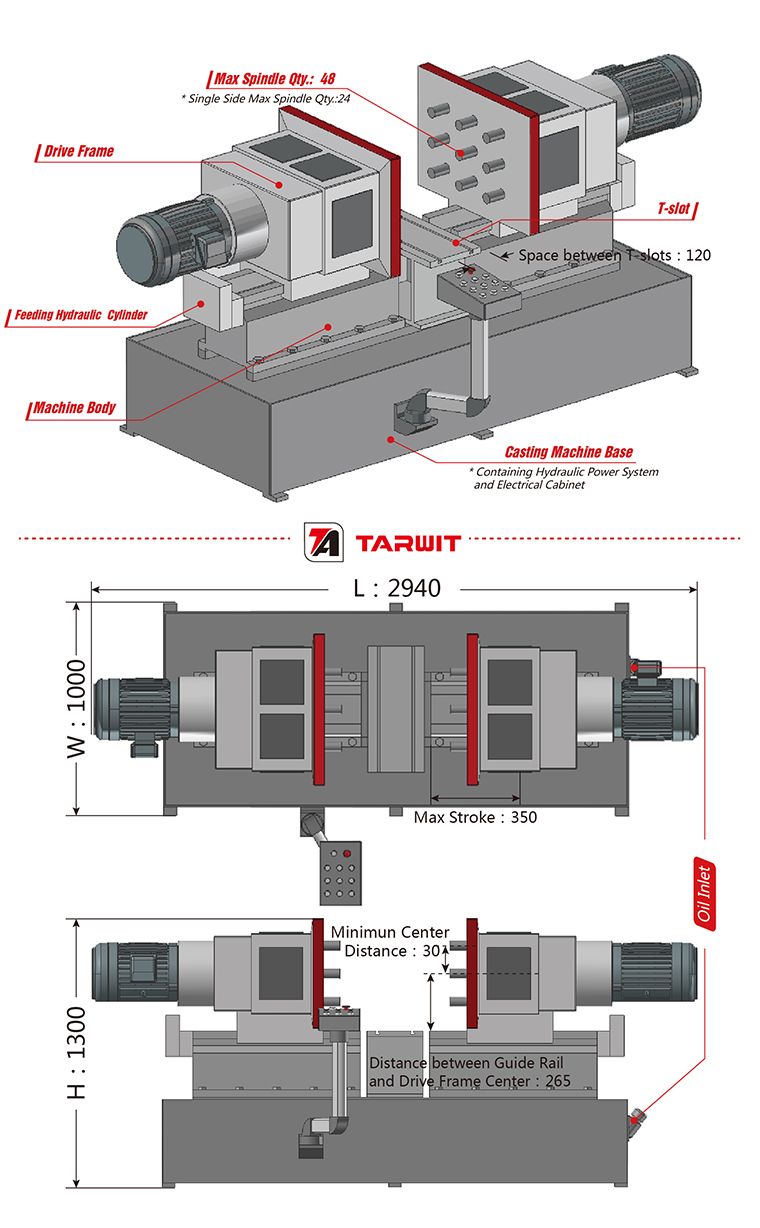

Machine features
ZK6413 series horizontal multiple spindle drilling machine are capable of processing two surface at the same time, characteristic of higher efficiency, suitable for the parts with lots of holes,but with little distances between holes, and the parts of which two surface are needed to be drilled.
Machine parameters
Technical Parameter Value
Model ZB6413X48
Net weight 2500kg
Min center distance 30mm
Max No. Of Spindle 48pcs
Drilling Capacity Φ3-Φ13mm
Drilling Area 250x520mm
Work table size 450x750mm
Main Motor 5.5X2kw
Size 2940x1000x1300mm
Speed Adjust Frequency Converter to adjust speed
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 300mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 250-1200r/min
Lubrication Motor 0.09kw
