ZB6423X24
ZB6423X24
  • ZB6423X24

Views:1395Release date:2016-03-16

Previous:ZB6223X6Next:It's the last one.

Machine features
ZK6413 series horizontal multiple spindle drilling machine are capable of processing two surface at the same time, characteristic of higher efficiency, suitable for the parts with lots of holes,but with little distances between holes, and the parts of which two surface are needed to be drilled.
Machine parameters
Technical Parameter Value
Model ZB6423X24
Net weight 2500
Min center distance 45mm
Max No. Of Spindle 24pcs
Drilling Capacity Φ14-Φ23mm
Drilling Area 240x500mm
Work table size 450x750mm
Main Motor 7.5X2kw
Size 2572x5600x1190mm
Speed Adjust Frequency converter
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 240mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 90-369r/min
Lubrication Motor 0.09kw

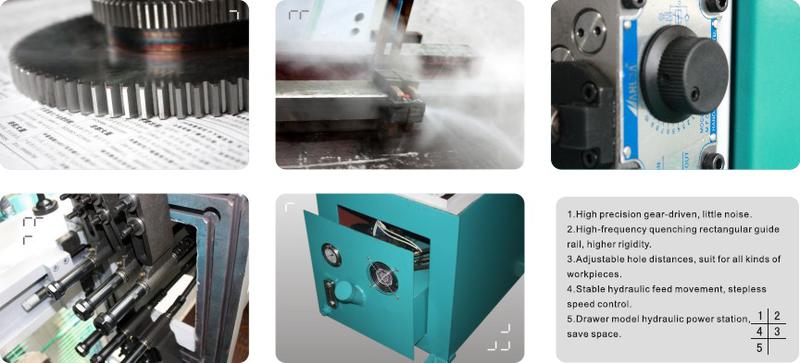

Details


 Processing Example

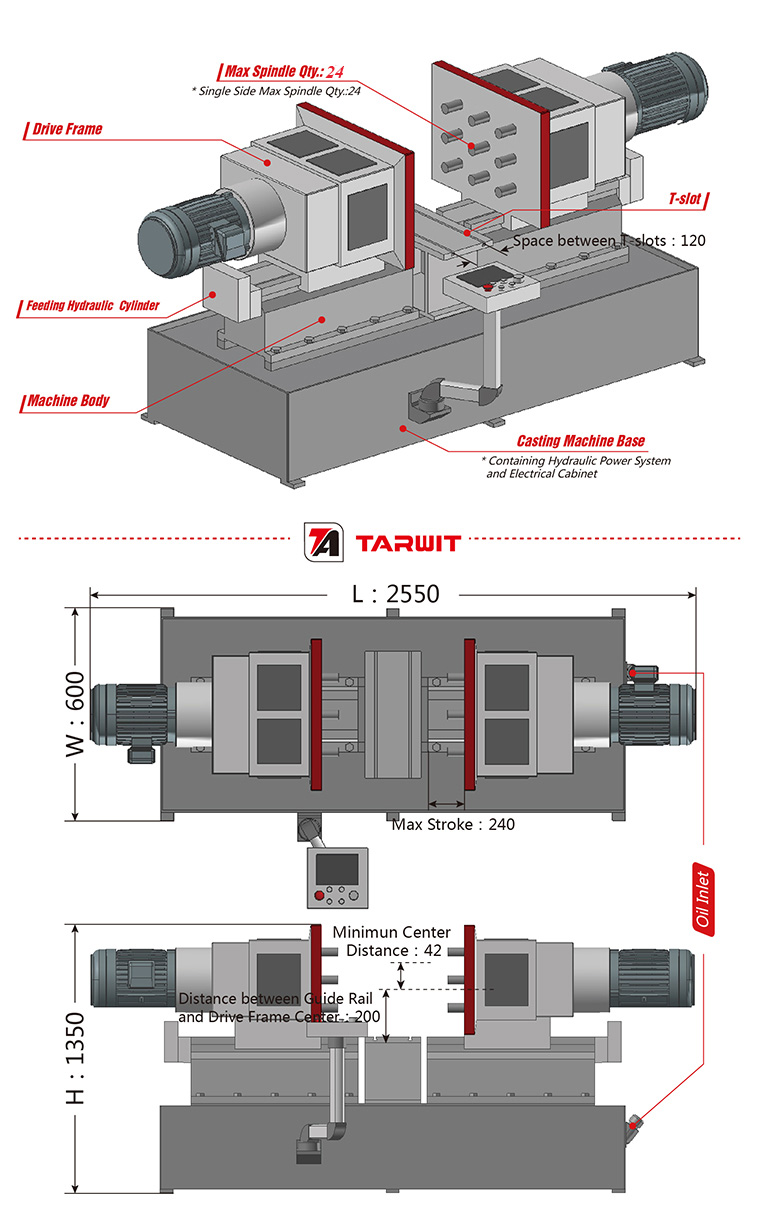

ZB6423X24 2.jpg
