Machine features

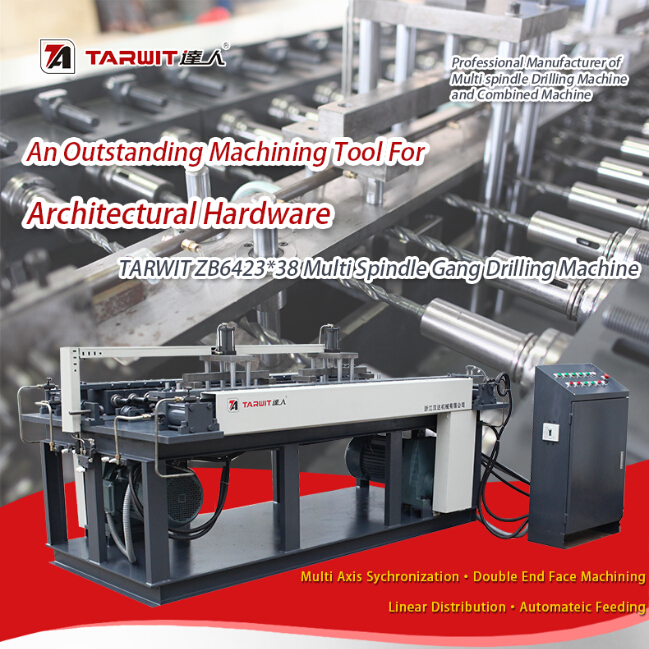

ZB6423 horizontal multi spindle drilling machine is the newest modle for drilling the holes in the line.It can be drill lots of holes in the line at the same time,very efficiency.It's very popular in building industry.Also we can make the specials to meet your request.

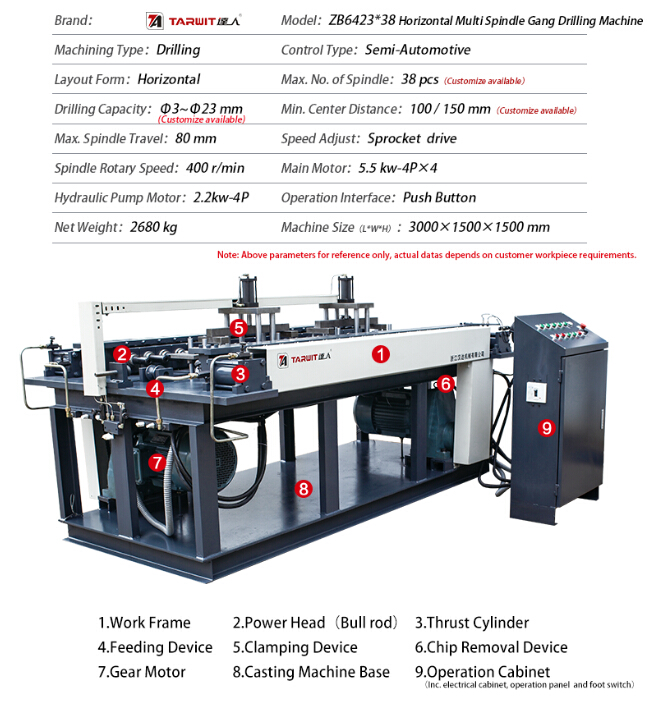

Machine parameters
Technical Parameter Value
Model ZB6423X38
Net weight 2680kg
Min center distance 100/150(customization)
Max No. Of Spindle 38pcs
Drilling Capacity φ3~φ23(customization)
Drilling Area 50x2250mm
Stroke 80mm
Main Motor 5.5-4pX4kw
Size 1500x1500x3000mm
Hydraulic Motor 2.2kw
Speed Adjust Sprocket Drive
Hydraulic pump motor 2.2-4Pkw
Maximum Spindle Travel 80mm
Spindle Rotary Speed 400r/mim
Details



 Specification



 Processing Example

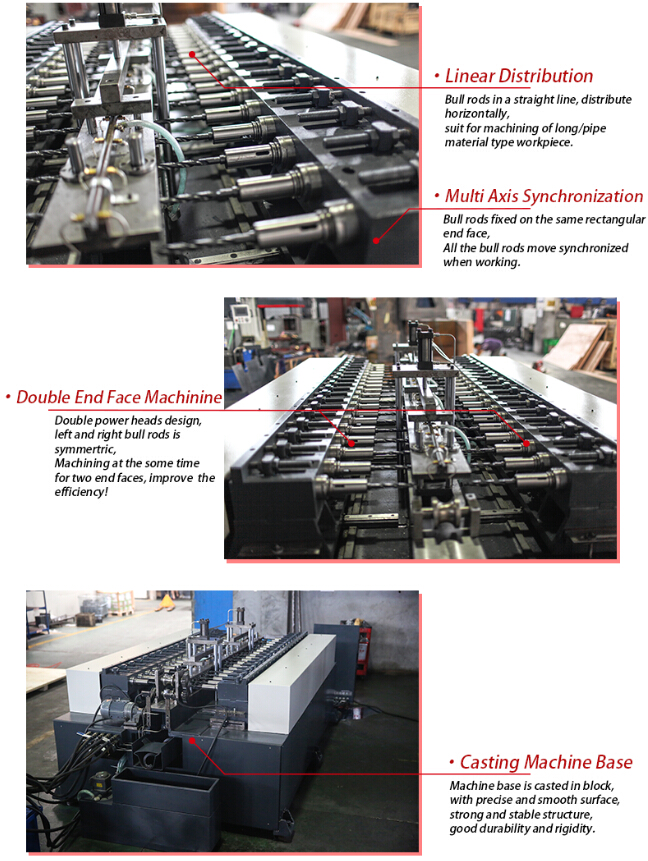

 Advantages

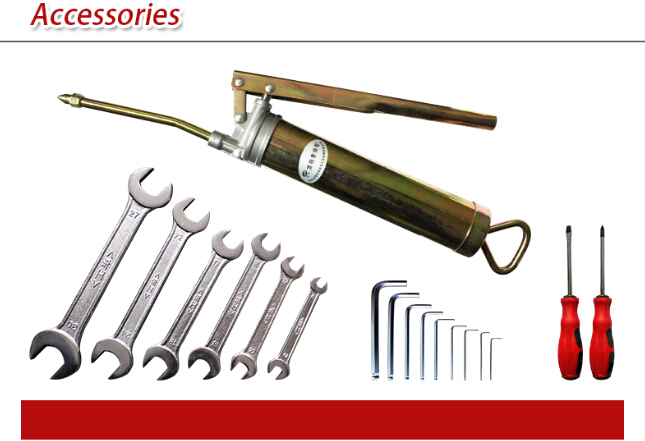

 Standard Accessories

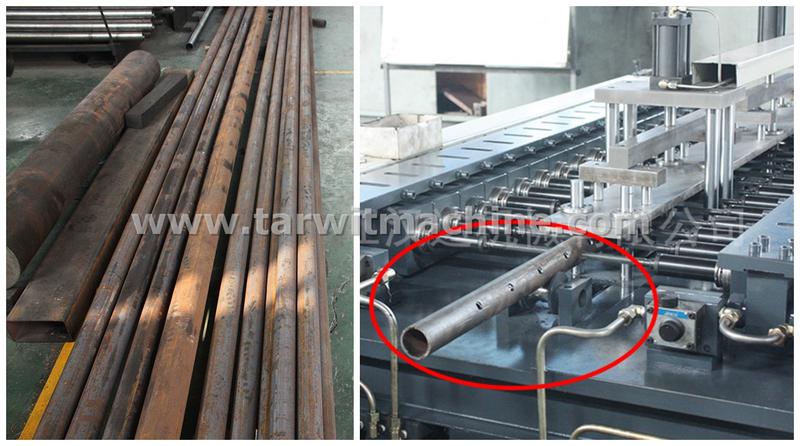

 Processing Example

Machine Model:ZB6423*38/38Y           Workpiece Name:Building Scaffolding           Depth of Holes:4mm

Diameter of Holes:14mm                   Number of Holes:38                                         Processing Time:50s

ZB6423x38Multi Spindle Drilling Machine photo.jpg
