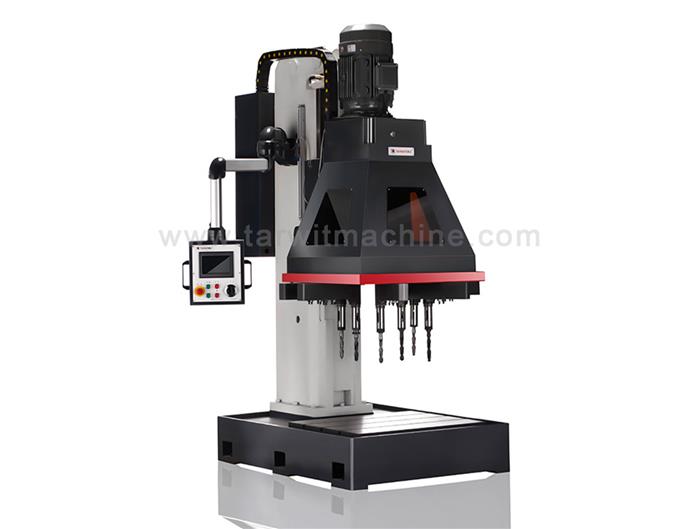

Machine features

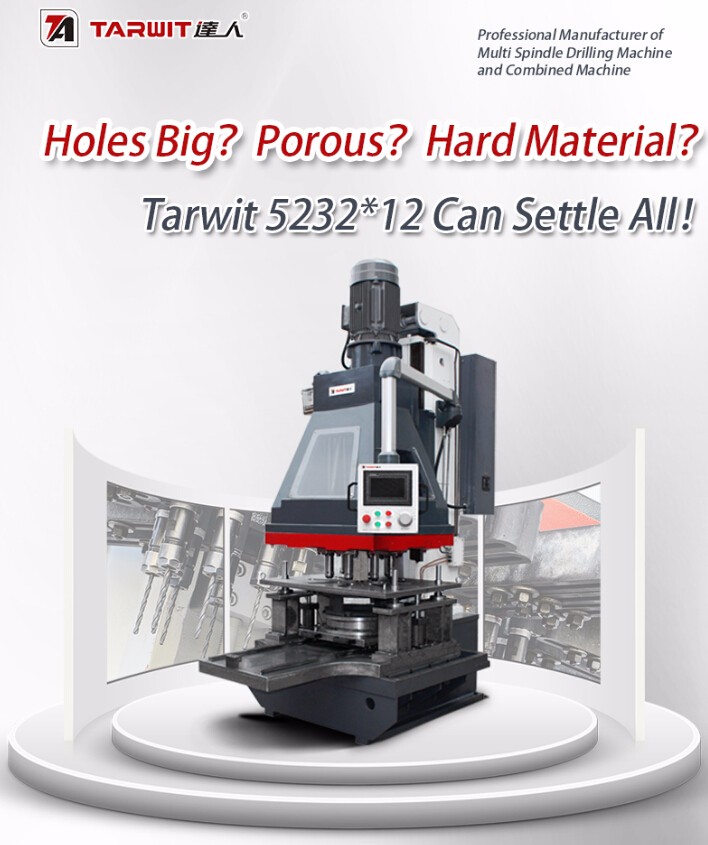

TARWIT brand vertical multiple drilling machine is our second generation vertical machine, fully absorbing the advantages of the multiple drilling machines existed world widely. With adjustable hole distances, it’s suitable for all kinds of work piece, especially good at drilling cast iron, non-ferrous metals and the ferrous metals with the hardness less than HRC35. It will be a great help to you when large quantity batch production is needed.

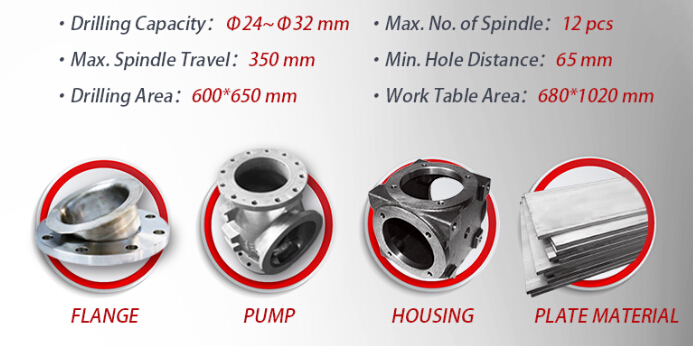

Machine parameters
Technical Parameter Value
Model ZK5232x12
Net weight 4980kg
Min center distance 65mm

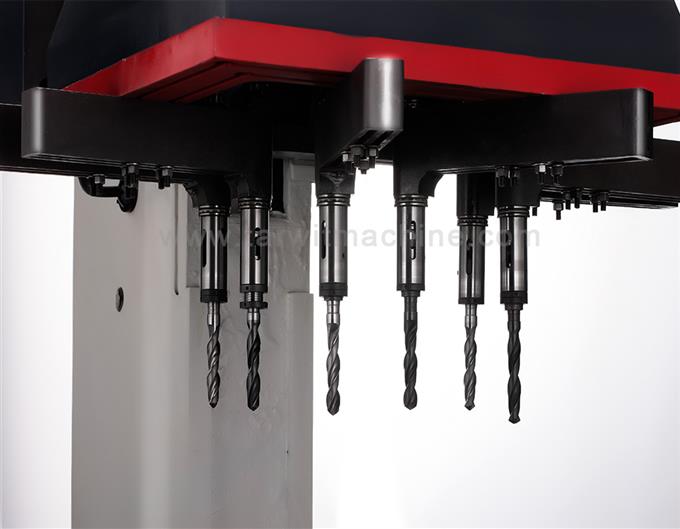

Max No. Of Spindle 12pcs
Drilling Capacity φ24~φ32
Drilling Area 600x650mm

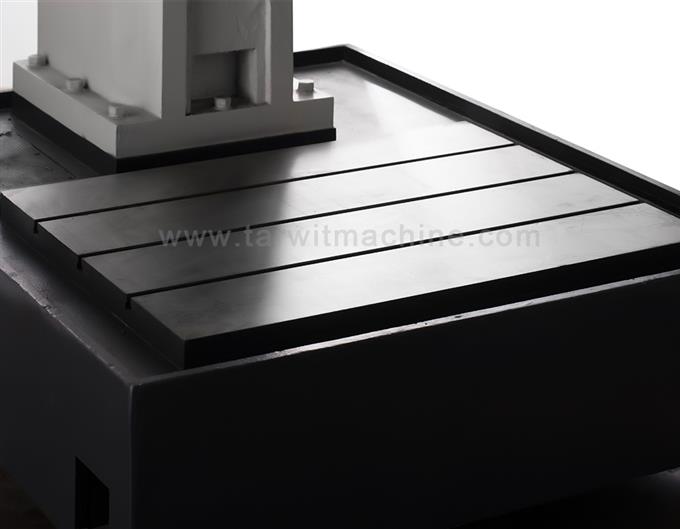

Work table size 680x1020mm
Main Motor 18.5kw

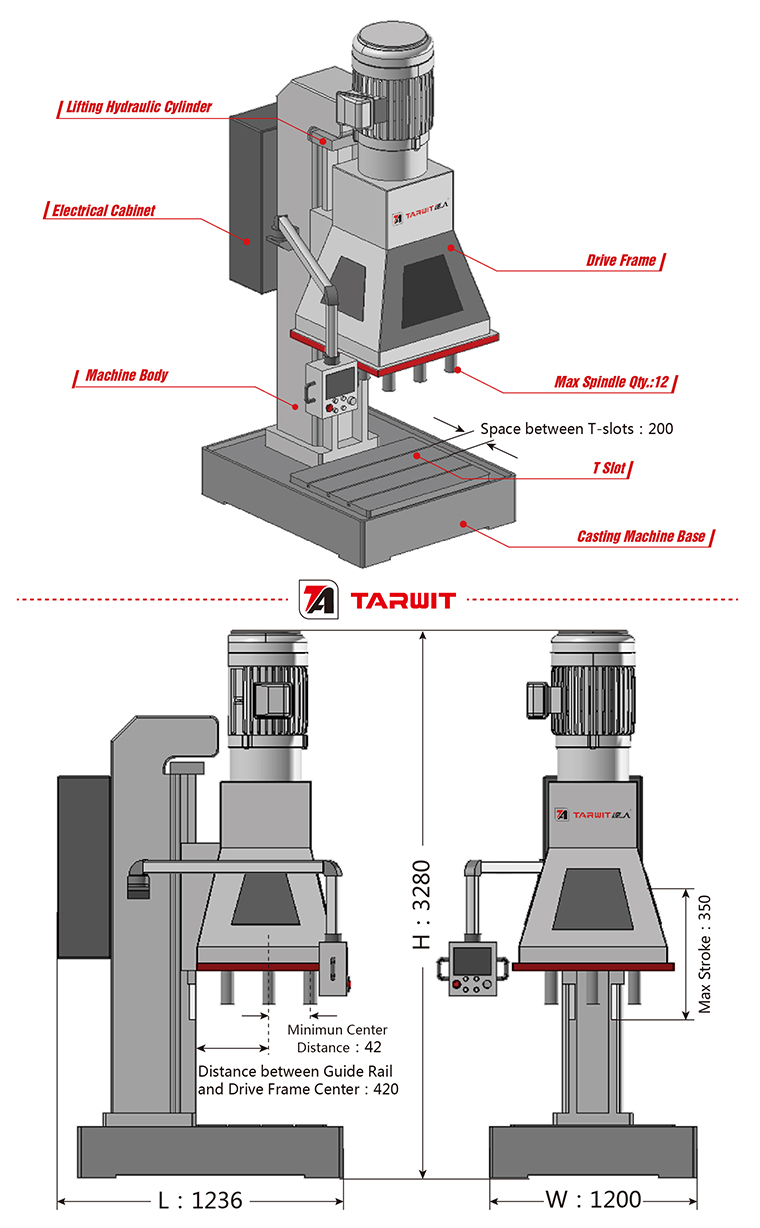

Size 1236x1200x3282mm
Z axis Travel(Stroke) 350mm
Speed Adjust Frequency converter
Drilling Capacity(hole size) 23-32mm
Hydraulic pump motor 4kw
Min Distance From Spindle Head 500mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 200~400r/min
Lubrication Motor 0.12kw
Details



  Specification

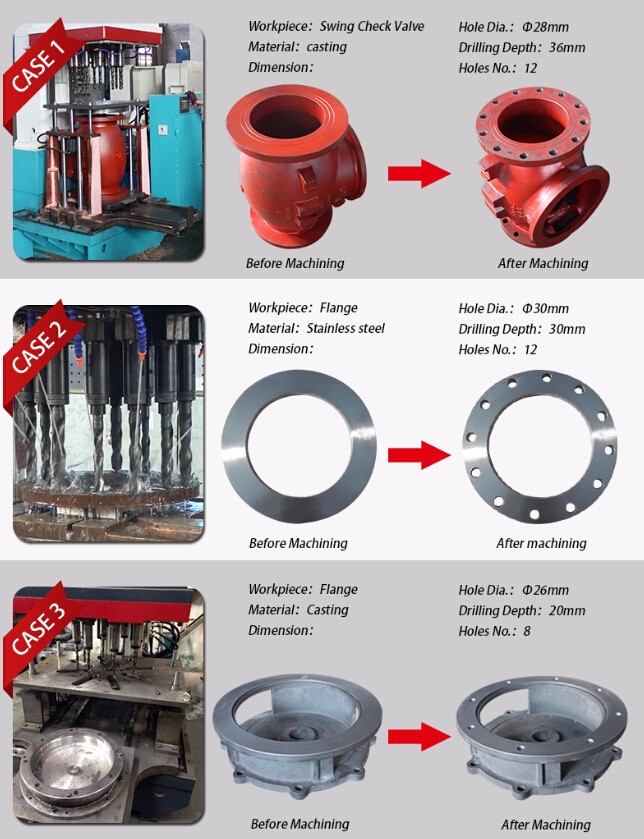

  Processing Example





 Advantages

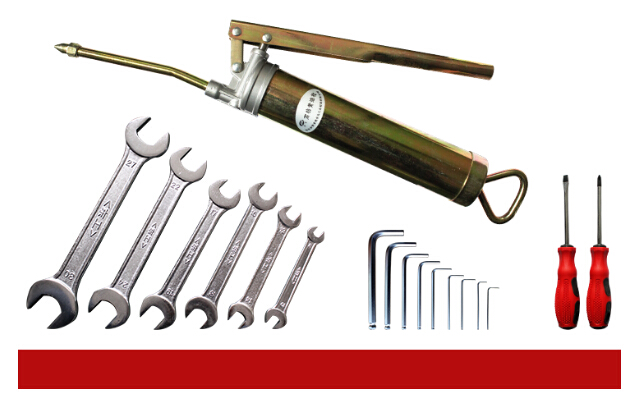

 Standard Accessories
