ZK8223X5-L
ZK8223X5-L
  • ZK8223X5-L
  • ZK8223X5-L
  • ZK8223X5-L
  • ZK8223X5-L

Views:1529Release date:2016-03-15

Previous:It's the first one.Next:ZK7423X12

Machine features

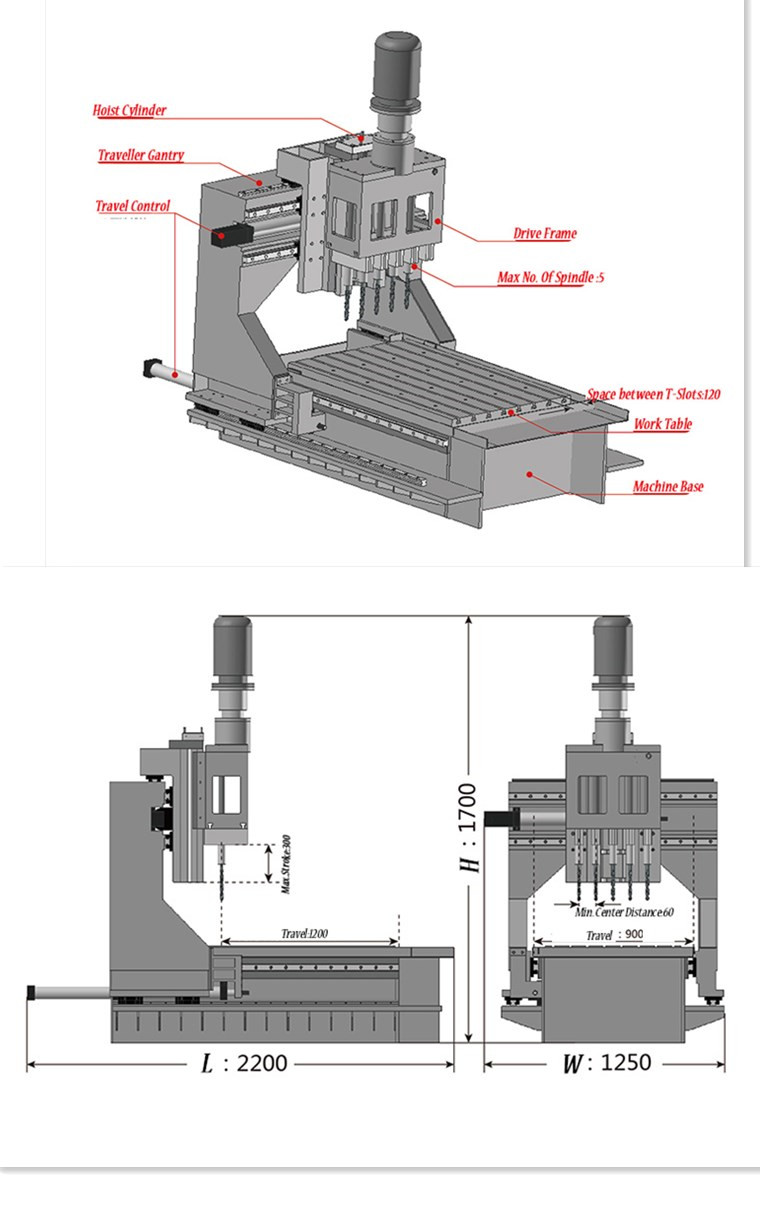

ZK8223X5 drilling machine,driven by hydraulic,can be moved in X.Y.Zdirections within the drilling area.It's suitable for drilling lots of holes,which is in the one surface.
Machine parameters
Technical Parameter Value
Model ZK8223X5-L
Net weight 4700kg
Min center distance 60mm
Max No. Of Spindle 5pcs(Customization)
Drilling Capacity Ф14-23mm
Drilling Area 950X1200mm
Stroke 300mm
Work table size 950X1450mm
Spindle Speed 120-280rpm
Main Motor 7.5-4Pkw
Voltage 380V
Size 3000x1600x1500mm
Speed Adjust frequency converter
Hydraulic pump motor 2.2kw
Min Distance From Spindle Head 500mm
Maximum Spindle Travel 300mm
Spindle Rotary Speed 120~280r/min(Customization)
Details

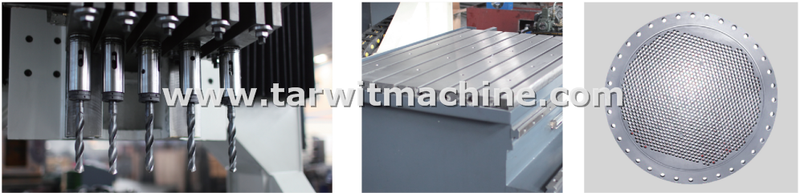

 ◆ Processing Example


Machine ModelZK8223X5          Workpiece Name:Tube Plate         Depth of holes:40mm

Diameter of Holes:21mm              Number of Holes300                   Processing Time90m

ZK8223X5-L Gantry NC multi-spindle drilling machine photo4.png
