QK5223X12
QK5223X12
  • QK5223X12
  • QK5223X12
  • QK5223X12

Views:658Release date:2018-03-07

Previous:QK5213X24Next:QK5223X24

Machine features
QK5223 numerical controlled vertical multiple spindle drilling and tapping machine is the latest machine model developed by Handa machinery company,use the new model servo motor,to get higher spindle speed,plus moveable worktable.Ensure high precision hole position and threads quality .You can set the thread Pitch on the touch screen control panel to meet the requirements of different standard.High efficient,easy to operate.
Machine parameters
Technical Parameter Value
Tapping capacity M3~M16
Net weight 2980kg
Min center distance 45mm
Max No. Of Spindle Drilling:6pcs Tapping:6pcs
Drilling Capacity φ3~φ23
Drilling Area 300X500mm
Work table size 300X230mm
Main Motor 5.5kw
Size 940X1108X2400mm
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 70mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 0~450r/min
Lubrication Motor 0.09kw
Details

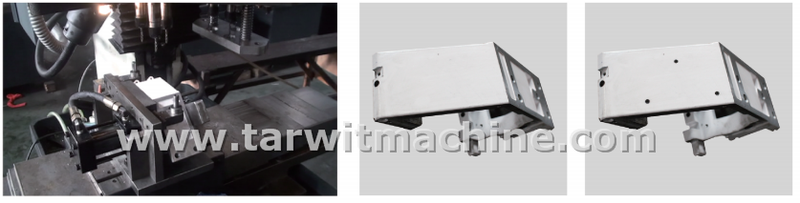

 Processing Example


Machine ModelQK6213X24             Workpiece Name:Embroidery Machine Parts         Depth of holes:10mm

Diameter of Holes:φ4mm    M5               Number of Holes3                                              Processing Time18s

QK5223X12 NC vertical multiple spindle drilling&tapping machine photo (4).png
