GZ 4230
GZ 4230
  • GZ 4230

Views:873Release date:2016-07-11

Previous:It's the first one.Next:It's the last one.

Machine parameters
Technical Parameter Value

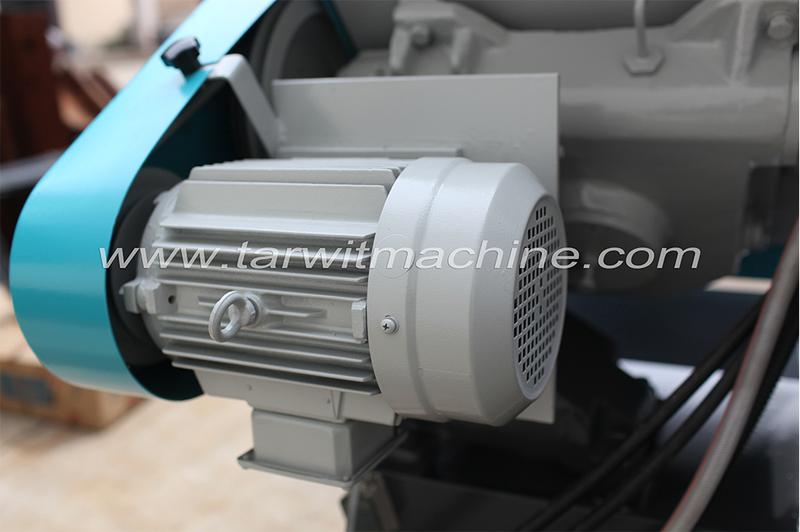

Main Motor 3
Size 2100x1935x1330
Hydraulic pump motor 1.5
Blade type & size 34x1.1x4115
Blade tension Manual
Cutting capacity 300Hx300W
Blade speed 28.41.60.80.100

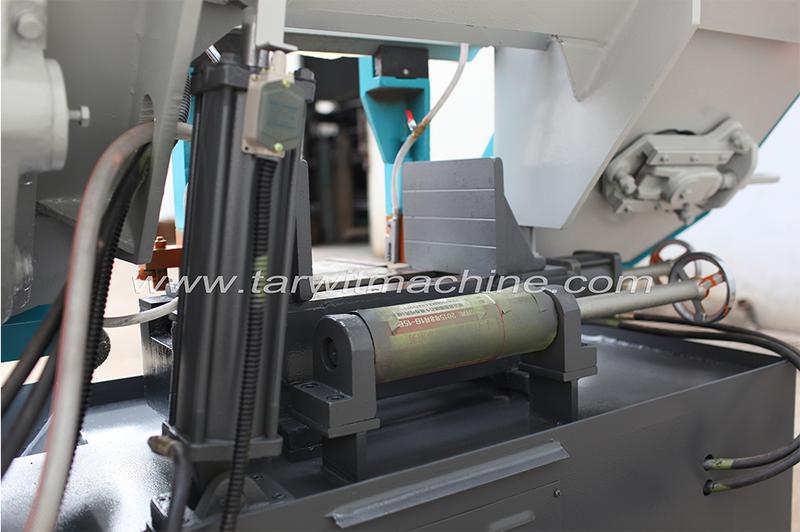

Workpiece clamp Hydrulic press clamping
Coolant pump 0.09
Table height 610
Details
Features:
Adopts PLC, HMI console, column down feed system
Hydraulic cutting speed controlled
Auto infeeding Auto cutting Auto outfeeding
Shift of mode either manual or automation
Two choices for automatic mode, single cycle and continuous cycle.
Single cycle mode: including actions of rear fixture clamping, feed in, front fixture clamping, rear fixture loosing and retracting, cutting, stop and so on.  Continuous cycle mode: input the specification and the quantity of material to cut, it will do the action cycle continuously.
High sawing precision, tolerance within 0.10mm
Safety protection device: auto-stop of the machine while the belt pulley is open, blade stalled or breakage detection unit


Option:
inverter
nesting fixture for bundle cutting
various vice fixture
hydraulic blade tensioning
roller conveyor
chip conveyor


Cutting
