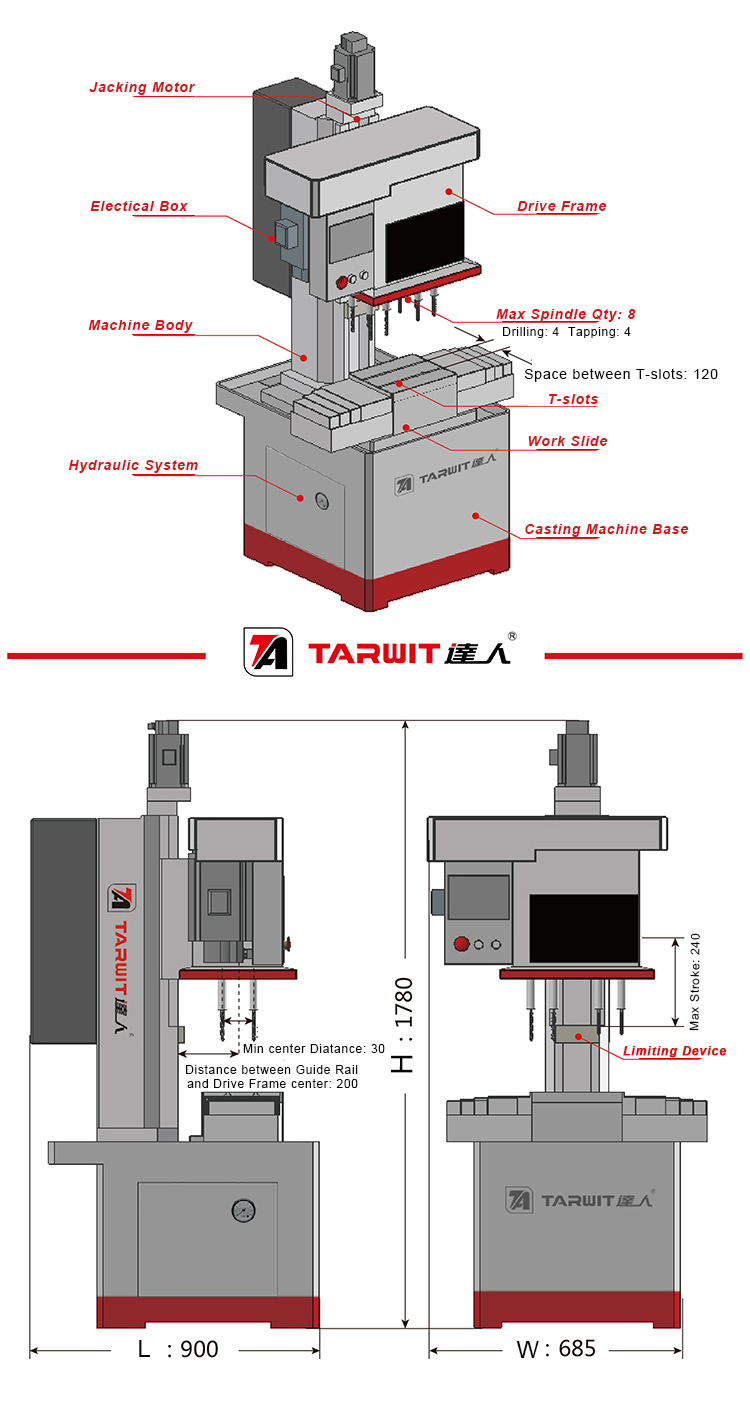

Machine features
QK5223 numerical controlled vertical multiple spindle drilling and tapping machine is the latest machine model developed by Handa machinery company,use the new model servo motor,to get higher spindle speed,plus moveable worktable.Ensure high precision hole position and threads quality .You can set the thread Pitch on the touch screen control panel to meet the requirements of different standard.High efficient,easy to operate.
Machine parameters
Technical Parameter Value
Weight 980kg
Cooling pump 0.09
Work sliding table motor 0.4
Work sliding table travel 300
Tapping capacity M3~M16
Net weight 980kg
Min center distance 45mm
Max No. Of Spindle Drilling:4pcs Tapping:4pcs
Drilling Capacity φ3~φ23
Drilling Area 170X290mm
Work table size 210X300mm
Main Motor 3.7kw
Size 900X685X1780mm
Speed Adjust Servo adjustment
Drilling Capacity(hole size) Drilling:φ3~φ23 Tapping: M3~M16
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 210mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 0~1000r/min
Lubrication Motor 0.09kw

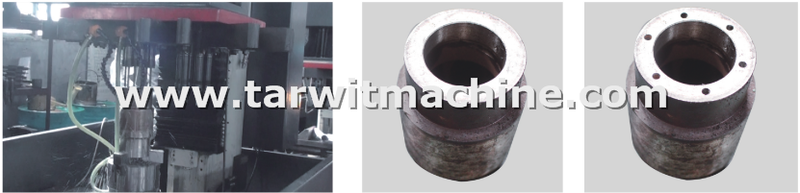

 Processing Example

Machine ModelQK6213X12/12Y          Workpiece Name:Support Wheel           Depth of holes:12mm

Diameter of Holes:φ6.5mm    M8               Number of Holes12                         Processing Time30s
