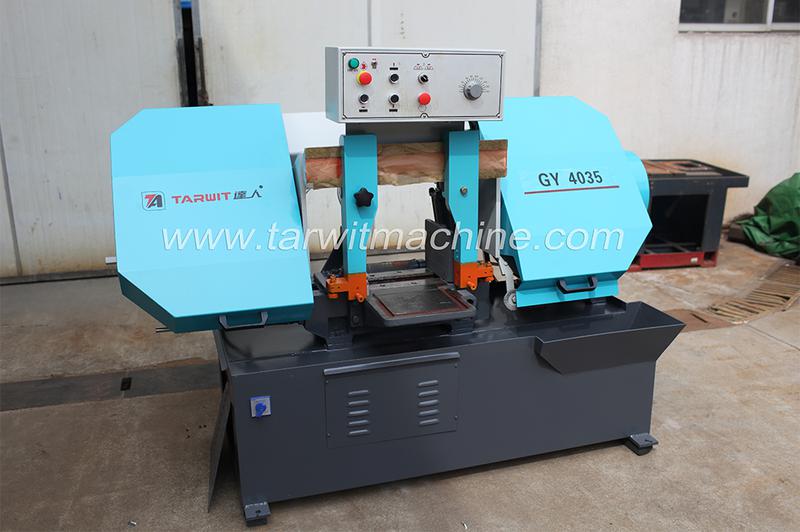

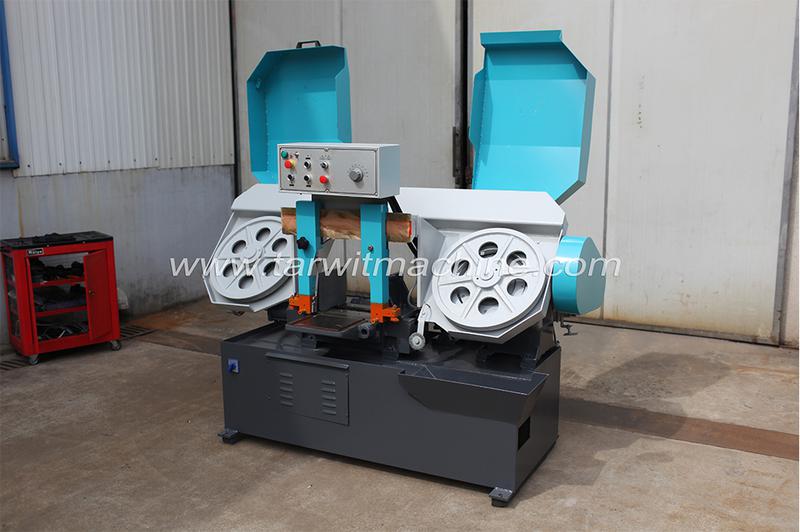

GY 4035
GY 4035
  • GY 4035
  • GY 4035
  • GY 4035
  • GY 4035
  • GY 4035

Views:962Release date:2016-06-11

Previous:It's the first one.Next:It's the last one.

Machine parameters
Technical Parameter Value
Model GY 4035
Net weight 1200
Voltage 380
Size 2150*1150*1400
Hydraulic Motor 0.42kw
Blade type & size 34*1.1*4115mm
Blade tension Manual
Rated power 3kw
Cutting capacity 350mm
Blade speed 30/55/85 m/minute
Workpiece clamp Hydraulic
Main drive gears Worm gear
Details













  Metal Cutting machine Horizontal NC controlled band saw machine used for cutting pipe






GY-4028

GY-4028-I

GY-4028/65

GY4035

Cutting Capacity(mm)

220Hx400W

220Hx400W

200HX650W

280HX400

Blade Speed (m/min)

22.48.70

28.41.60.80.100

20.30.45.70

30.55.85

Blade Size (mm)

27X0.7X3505

27X0.7X3505

34X1.1X3990

34X1.1X4115

Motor Main (kw)

2.2

3

3

3

Motor Hydraulic (kw)

0.42

0.42

0.42

0.42

Coolant Pump (kw)

0.04

0.04

0.04

0.04

Table height (mm)

610

610

 610

610

Workpiece Clamping

Hydraulic clamping

Hydraulic clamping

Hydraulic clamping

Hydraulic clamping

Blade Tensioning

Manual

Manual

Manual

Manual

Size

1850x1150x1300

1850x1150x1300

2000x1150x1350

2150x1150x1400

Main Drive

Worm drive

Worm drive

Worm drive

Worm drive





The horizontal band sawing machine series are semi-automatic metal band sawing machines, renewal products for the old-style hack sawing machines, are mainly used for cutting various ferrous and non-ferrous metal materials, with high saw cutting precision, little saw kerf, stable worm drive performance and high-efficiency and energy saving. They are the ideal blanking equipments for the small pieces.



  • The feeding of saw cutting adopts stepless speed regulation.

  • The workholding is combined with hydraulic pressure and manual adjustment with convenient operation.

  • When GY-4028-I saw is carrying on feeding work, the pump will automatically stop work to reduce energy consumption.



Optional Accessaries:

inverter
nesting fixture for bundle cutting
various vice fixture
hydraulic blade tensioning
roller conveyor
chip conveyor
