Machine parameters
Technical Parameter Value

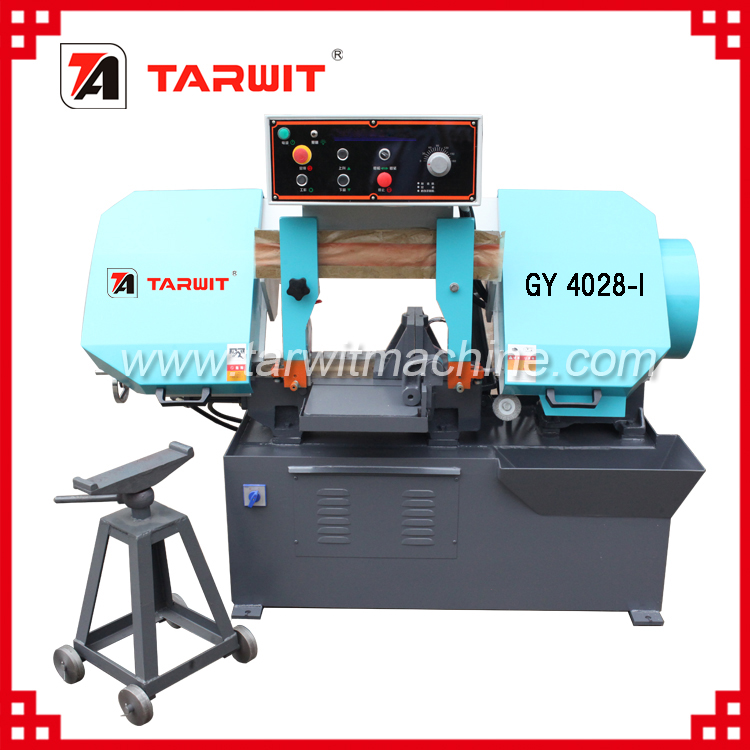

Model GY 4028-Ⅰ
Net weight 760
Voltage 380
Size 1850*1150*1300mm
Hydraulic Motor 0.42kw
Blade type & size 27*0.9*3505mm
Blade tension Manual
Cooling system motor 0.04kw
Rated power 3kw
Cutting capacity 280mm diameter/220Hx400W
Blade speed 28/41/60/80/100 m/minute
Workpiece clamp Hydraulic clamping
Main drive gears Worm gear
Details

Features:

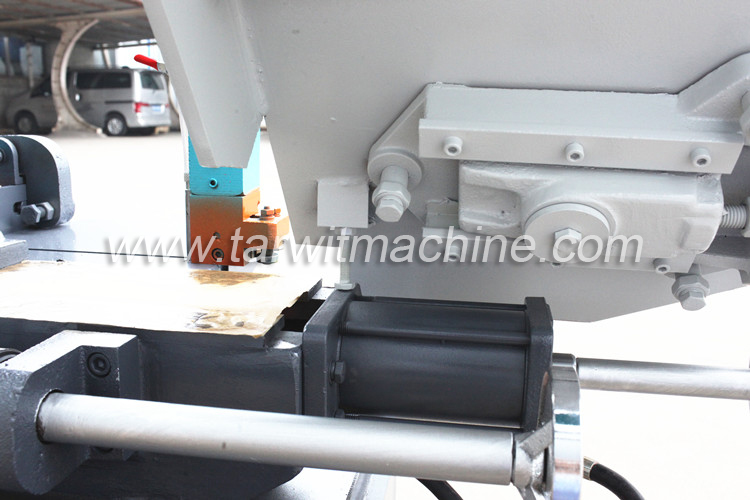

Hydraulic clamping

Hydraulic cutting speed controlled
Easy to operate, one button control
Stepless adjust cutting feed
Save energy

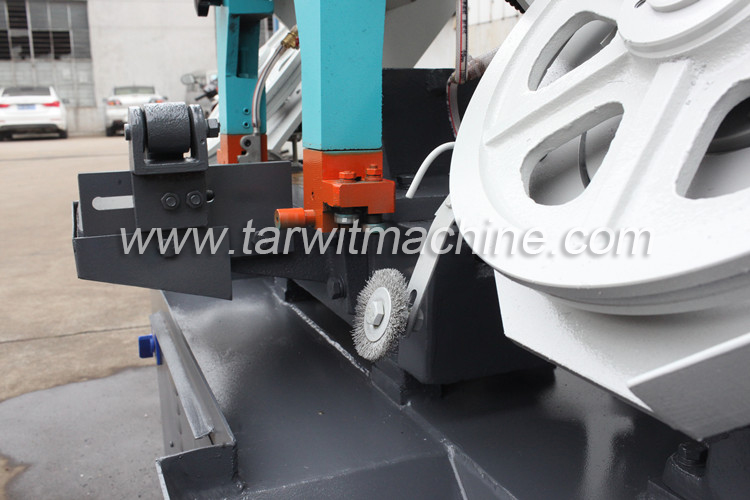

Steel wire wheel and cooling water clean chips
Recycle cooling water
Low noise
Durable

Optional accessories:
inverter
nesting fixture for bundle cutting
various vice fixture
hydraulic blade tensioning
roller conveyor
chip auger
