ZK6413X48
ZK6413X48
  • ZK6413X48

Views:1401Release date:2016-04-13

Previous:ZK6423X12Next:ZK6423X24

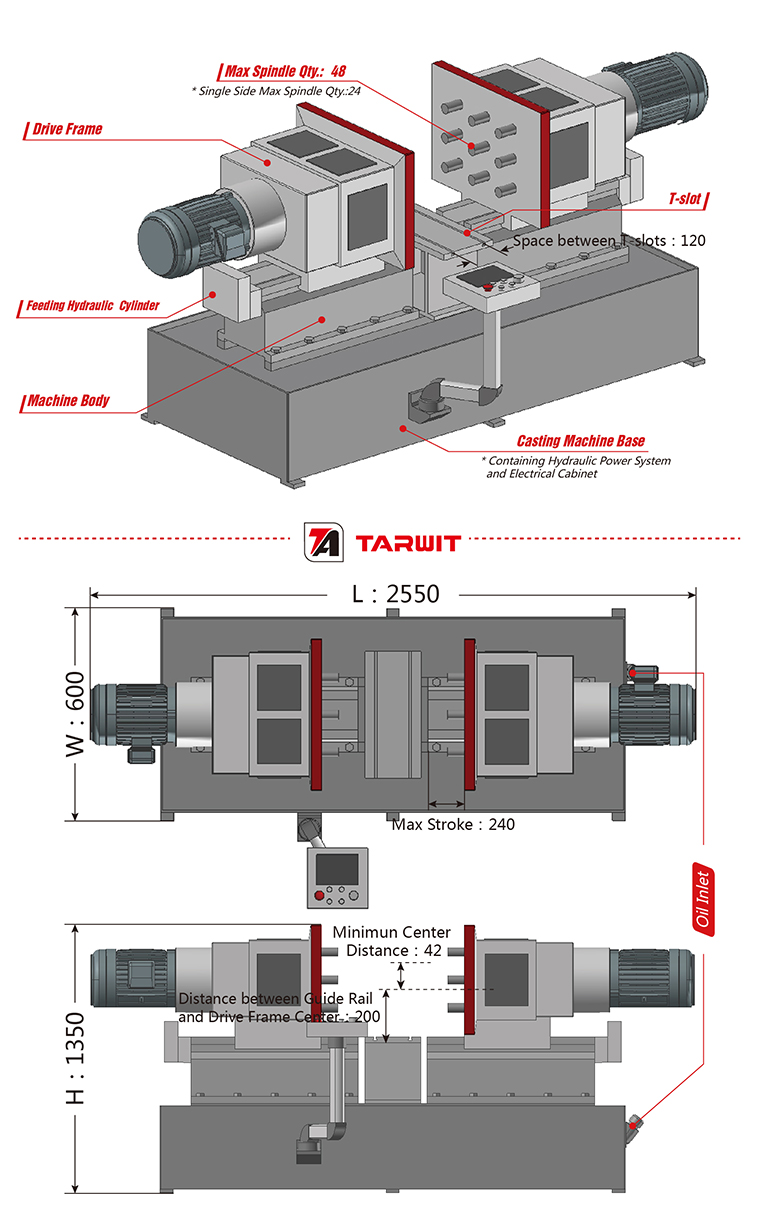

Machine features
ZK6413 series horizontal multiple spindle drilling machine are capable of processing two surface at the same time, characteristic of higher efficiency, suitable for the parts with lots of holes, but with little distances between holes, and the parts of which two surface are needed to be drilled.
Machine parameters
Technical Parameter Value
Net weight 2500kg
Min center distance 30mm
Max No. Of Spindle 48pcs
Drilling Capacity φ3~φ13mm
Drilling Area 300X520mm
Stroke 350
Work table size 450X750mm
Spindle Speed 550~1350
Main Motor 5.5X2kw
Size 2940X1000X1300
Speed Adjust frequency converter
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 300mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 300~1350r/min
Lubrication Motor 0.09kw
Details

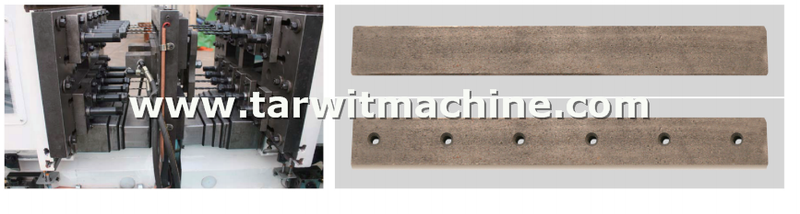

 Processing Example

Machine ModelZK6413X48/12Y             Workpiece NamePaper Cutter          Depth of holes:5mm

Diameter of Holes4mm                           Number of Holes6                           Processing Time20s

ZK6413X48 NC horizontal multiple spindle drilling machine photo1.png
