ZK6223X12
ZK6223X12
  • ZK6223X12

Views:1050Release date:2016-04-13

Previous:ZK6213X24Next:ZK6232X12

Machine features
ZK6223 horizontal multiple spindle drilling machine consist of two categories, fixed multiple spindle drilling machine and adjustable multiple spindle drilling machine, are characteristic of high rigidity, powerful driving force and smooth iron chip clearance suitable for the parts with large holes parts with deep holes and parts with different diameter holes. TARWIT ZB6213 series machine filled the blank in China market, are warmly welcomed now by the customers for their practical performance and moderate prices.
Machine parameters
Technical Parameter Value
Net weight 1500kg
Min center distance 42mm
Max No. Of Spindle 12pcs
Drilling Capacity Ф8-φ23mm
Drilling Area 290X500mm
Work table size 450X750mm
Spindle Speed 90~369
Main Motor 7.5kw-4P
Size 2550X600X1350mm
Speed Adjust frequency converter
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 300mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 240~560r/min
Lubrication Motor 0.09kw
Details




 Processing Example

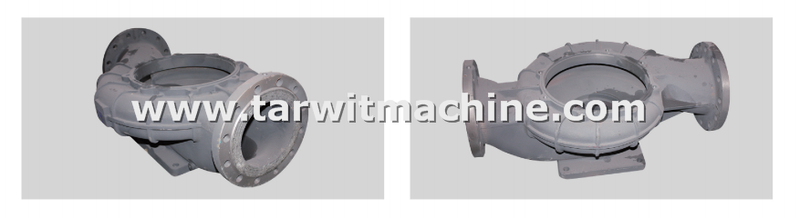

Machine ModelZK6223X12               Workpiece NameWater Pump                Depth of holes:20mm

Diameter of Holes16mm                   Number of Holes12                                 Processing Time20s

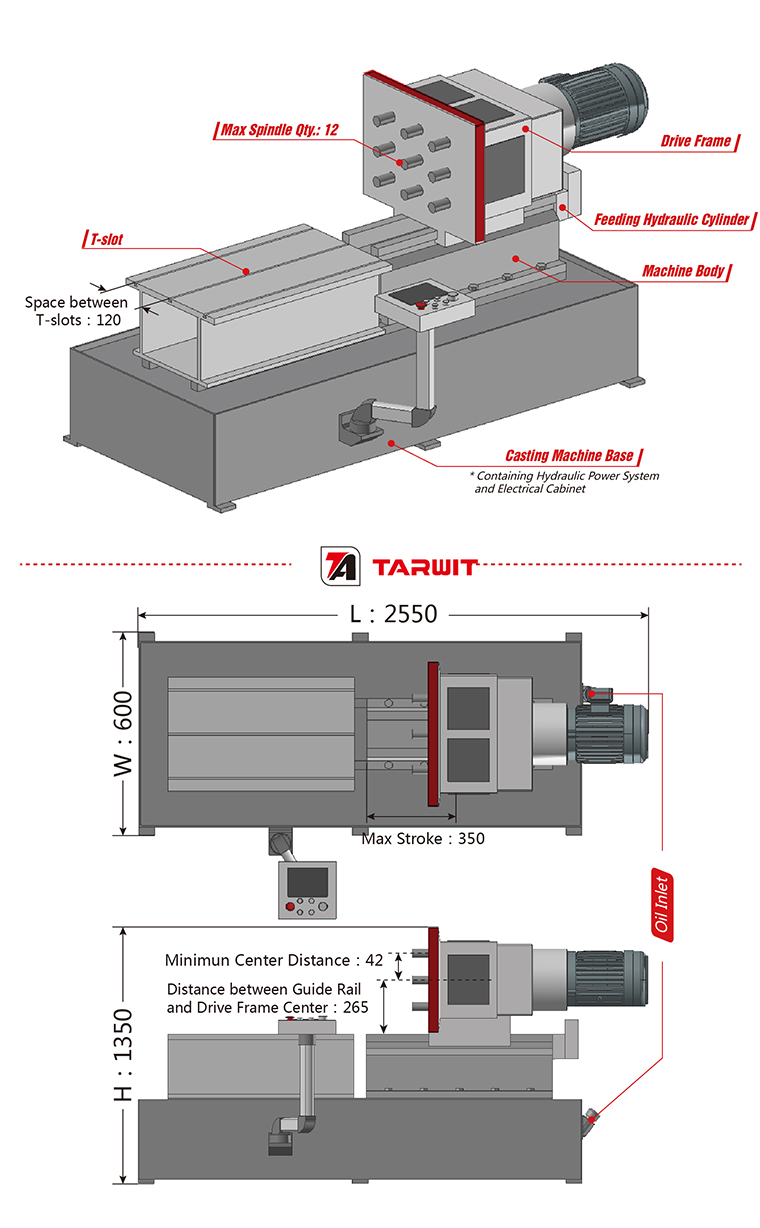

ZK6223X12 NC horizontal multiple spindle drilling machine photo (2).png
