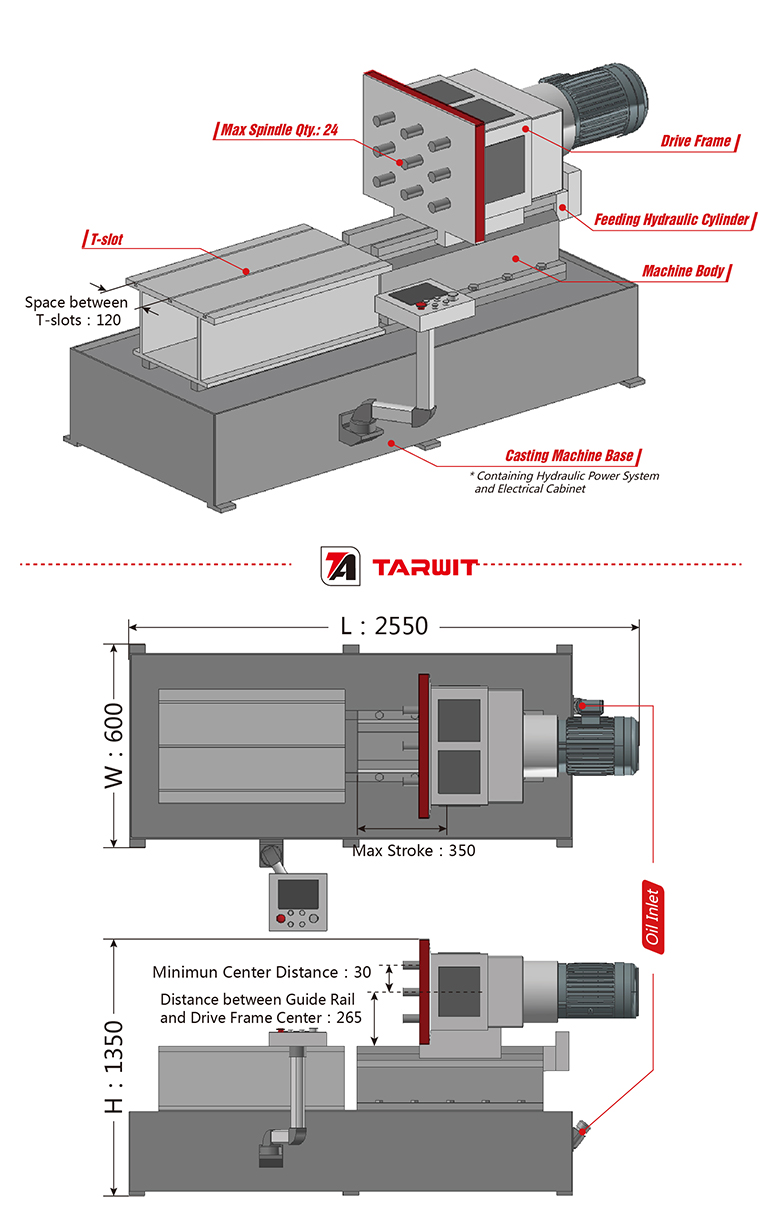

Machine features
ZK6213 horizontal multiple spindle drilling machine consist of two categories, fixed multiple spindle drilling machine and adjustable multiple spindle drilling machine, are characteristic of high rigidity, powerful driving force and smooth iron chip clearance suitable for the parts with large holes parts with deep holes and parts with different diameter holes. TARWIT ZB6213 series machine filled the blank in China market, are warmly welcomed now by the customers for their practical performance and moderate prices.
Machine parameters
Technical Parameter Value
Net weight 1500kg
Min center distance 30mm
Max No. Of Spindle 24
Drilling Capacity φ3~φ13mm
Drilling Area 300X520mm
Work table size 450X750mm
Spindle Speed 550~1350
Main Motor 7.5kw-4P
Size 2550X600X1350
Speed Adjust frequency converter
Drilling Capacity(hole size) 3-13
Hydraulic pump motor 1.5kw
Min Distance From Spindle Head 300mm
Maximum Spindle Travel 350mm
Spindle Rotary Speed 550~1350r/min
Lubrication Motor 0.09kw
