ZK6213X12
ZK6213X12
  • ZK6213X12
  • ZK6213X12

Views:1071Release date:2016-04-13

Previous:It's the first one.Next:ZK6223X6

Machine parameters
Technical Parameter Value
Net weight 1500
Min center distance 30
Max No. Of Spindle 12
Stroke 240
Spindle Speed 557/842/1367
Main Motor 5.5
Size 2550*600*1350
Drilling Capacity(hole size) 3-13
Hydraulic pump motor 1.5
Min Distance From Spindle Head 250
Lubrication Motor 0.09
Details

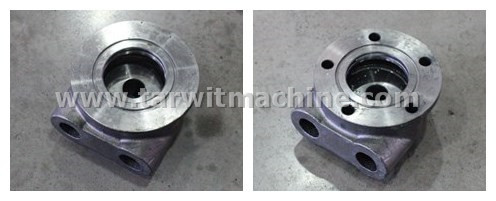

 Processing Example

Machine Model:ZK6213*12/5Y           Workpiece Name:Engine parts                       Depth of Holes:65mm

Diameter of Holes:13mm                   Number of Holes:5                                         Processing Time:60s

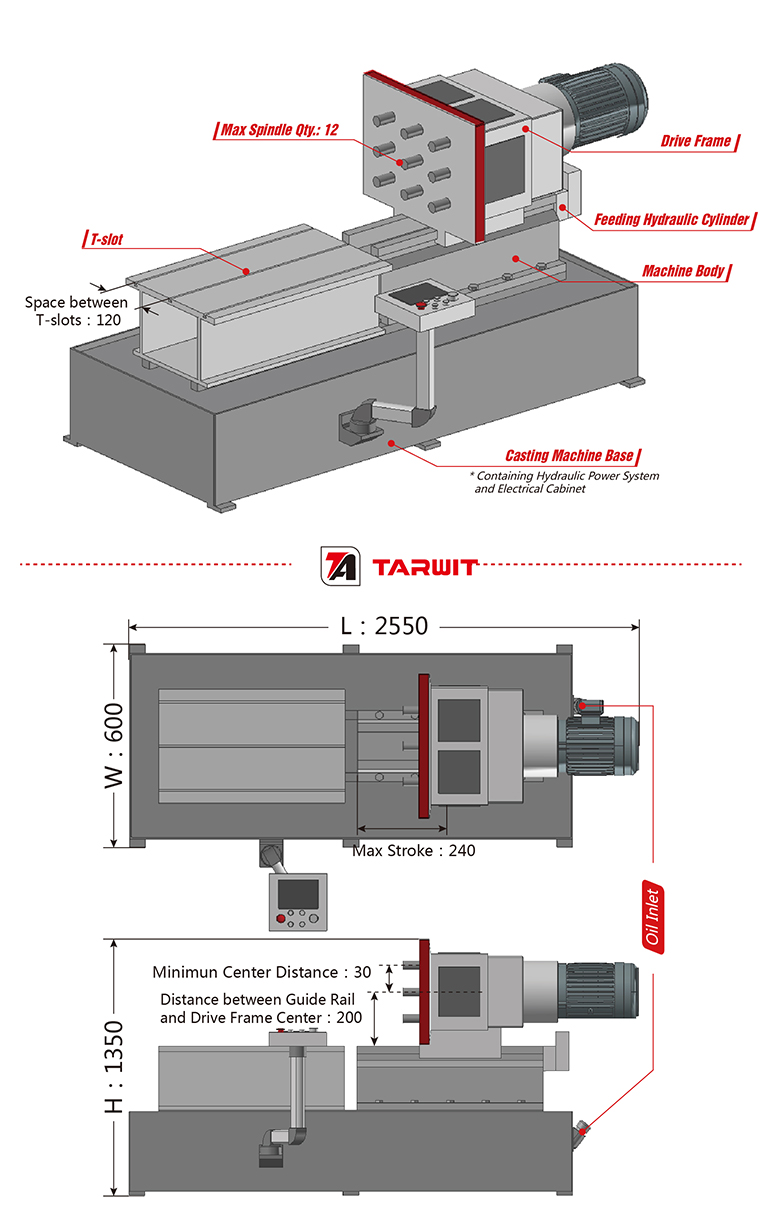

ZK6213x12NC Multi Spindle Drilling Machine photo.jpg



Tag
Multi Spindle Drilling MachineHorizontal Drilling Machine
