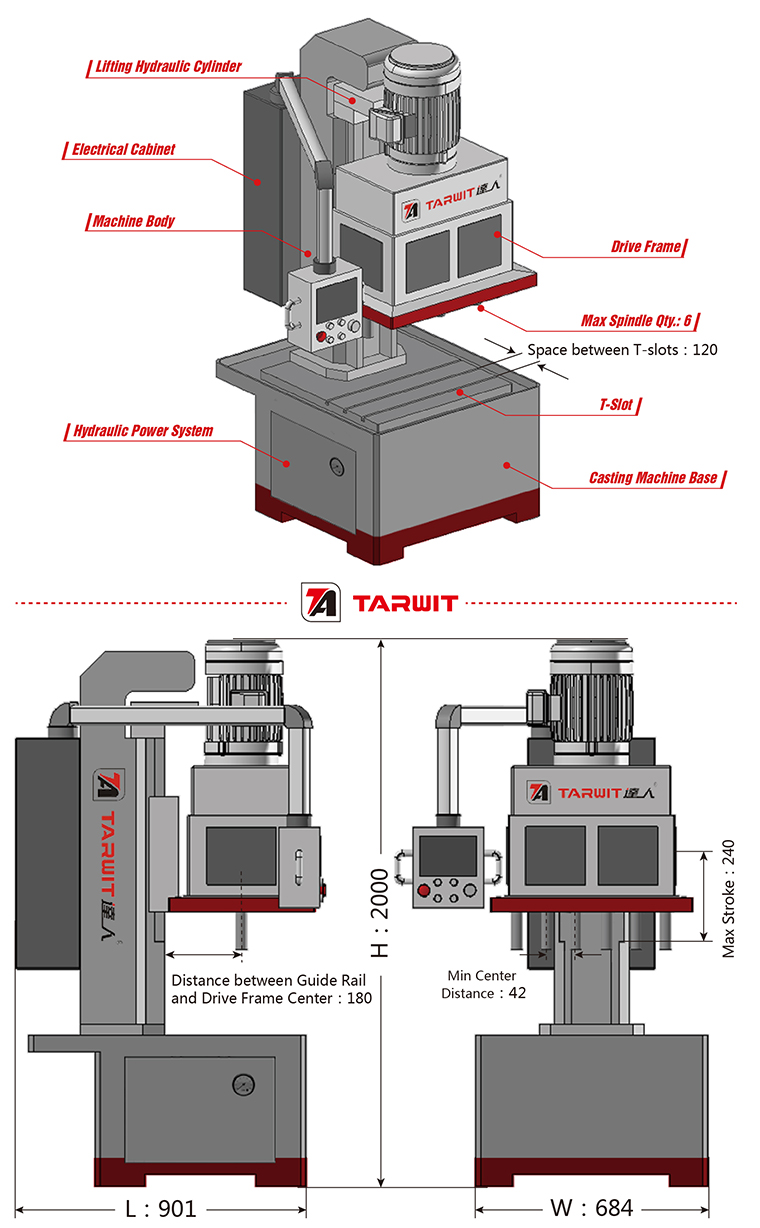

Machine features
ZK5213 series linear type machines, are especially useful for drilling the parts with holes that are linearly distributed, features high rigidity and high efficiency.
Machine parameters
Technical Parameter Value
Net weight 980kg
Min center distance 42mm
Max No. Of Spindle 6
Drilling Area 50X500mm
Stroke 240
Work table size 350*500mm
Main Motor 4kw
Size 901X684X2000mm
Speed Adjust frequency converter
Drilling Capacity(hole size) φ3-φ13
Hydraulic pump motor 0.75kw
Min Distance From Spindle Head 210mm
Maximum Spindle Travel 240mm
Spindle Rotary Speed 300~800r/min
Lubrication Motor 0.09kw
